Pharmaceutical laboratory clean room BIOCAIR®

medicalfor intensive care unitfor airborne infection isolation

Product

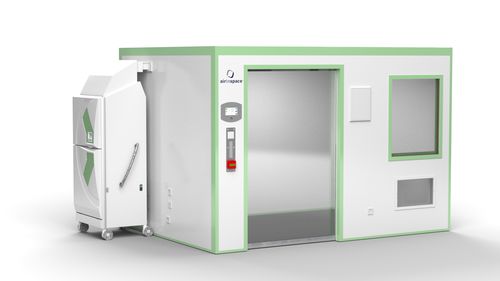

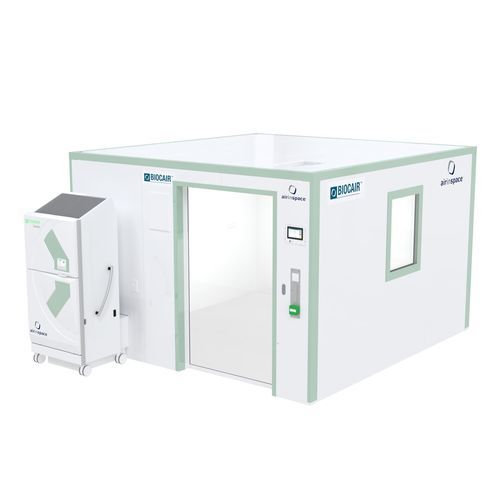

BIOCAIR® is a mobile pressurised room that converts a standard hospital room into a controlled positive- or negative-pressure area without structural works. It delivers a minimum ISO Class 6 environment and is intended to protect immunocompromised patients or to isolate infectious patients as required.

Use cases / Sectors

• Haematology
• Bone marrow and solid organ transplant units
• Onco-haematology
• ICU
• Infectious diseases isolation
• Hospital pharmacy

Overview & configuration
Configured with cleanroom partitions and an automatic door featuring controlled leakage flow, BIOCAIR® creates a protected environment within days. The modular, made-to-measure dimensions adapt to space constraints and room types (patient room, pharmacy, laboratory, office-based surgery). In combination with PLASMAIR® or HEPA decontamination units, BIOCAIR® operates in positive pressure to protect fragile or immunocompromised patients or in negative pressure to isolate infectious patients. A backlit ceiling option is available to improve patient comfort.

Key benefits

• Create a controlled environment without structural works
• Rapid on-site assembly by installation teams in a few days
• Customisable modular dimensions to fit any room type

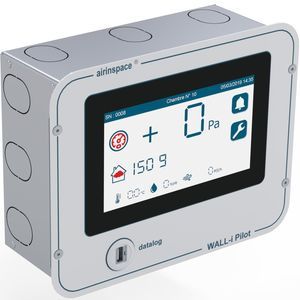

• Centralised control via touch screen for pressure and parameter management
• Temporary mobile solution that adapts to operational constraints
• Limits contamination spread, protecting patients and critical processes

Standards & certifications
Designed and manufactured under applicable quality standards; ISO 9001 is cited among company certifications. BIOCAIR® provides an environment meeting a minimum of ISO Class 6.

Technical specifications

• Dimensions: Custom size (modular, made to measure)
• Differential pressure: Positive pressure: +15 Pa nominal; +30 Pa maximum — Negative pressure: -15 Pa nominal; -30 Pa maximum
• Environment class: ISO classification 6 (minimum)
• Construction: Cleanroom partitions and automatic door with controlled leakage flow
• Mobility: Mobile unit, temporary installation assembled on site in a few days
• Control: Centralised control via touch screen
• Compatibility: Configurable with PLASMAIR® or HEPA decontamination units for positive or negative pressure operation
• Options: Backlit ceiling for increased patient comfort
• Quality standard: ISO 9001 (company certification)
