Capture cage on casters バグキーパー

stainless steel

Intended use
Captures and contains flying insects entering from outdoors or present indoors. Insects are attracted by an attractor lamp and drawn into the unit from the rear of the lamp into a catch bag. Models available: 40W (バグキーパー), 20W (バグキーパーmini), 15W (バグキーパーmicro). Freestanding units and a wall-mounted micro model are offered.

Key features

• No chemicals or pesticides used; safe for people and the surrounding environment.
• The attractor lamp lures flying insects and suction from behind the lamp pulls them into the unit, where they are confined in a catch bag. The unit and catch bag include anti-backflow flaps to ensure secure capture.
• Catch bags for バグキーパー and バグキーパーmini are reusable after cleaning. Bags can be removed from the unit without exposing captured insects.
• Slim vertical design minimizes installation footprint. バグキーパー and バグキーパーmini have casters for easy relocation and installation in narrow areas such as factory shipping zones.
• Three models: 40W freestanding (バグキーパー), 20W freestanding (バグキーパーmini), 15W wall-mounted (バグキーパーmicro).

Specifications

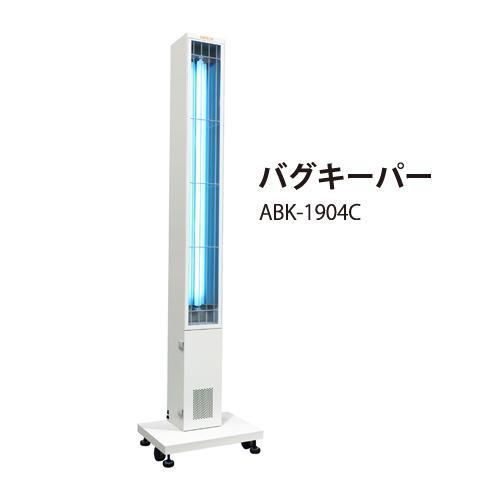

バグキーパー
Model: ABK-1904C
Catch bag: Polyester mesh (with anti-backflow flap)
Airflow: approx. 2.0 m³/min
Power supply: AC100V 1φ 50/60Hz
Rated power: approx. 100 VA
Weight: approx. 40 kg
Attractor lamp: 40W ×1
Construction: Main body: painted steel plate
Reflector: SUS430 BA plate
Accessories: 3 replacement catch bags

バグキーパーmini
Model: ABK-1002C
Catch bag: Polyester mesh (with anti-backflow flap)
Airflow: approx. 0.9 m³/min
Power supply: AC100V 1φ 50/60Hz
Rated power: approx. 50 VA
Weight: approx. 15 kg
Attractor lamp: 20W ×1
Construction: Main body: painted steel plate
Reflector: SUS430 BA plate
Accessories: 3 replacement catch bags

バグキーパーmicro
Model: ABK-650
Catch bag: Non-woven fabric mesh
Airflow: approx. 0.23 m³/min
Power supply: AC100V 1φ 50/60Hz
Rated power: approx. 50 VA
Weight: approx. 5 kg
Attractor lamp: 15W ×1
Construction: Main body: painted steel plate
Reflector: SUS430 BA plate
Accessories: 10 replacement catch bags

Key technical data

• Product name (series): バグキーパー
• Main models: ABK-1904C (バグキーパー), ABK-1002C (バグキーパーmini), ABK-650 (バグキーパーmicro)
• Attractor lamp: 40W (ABK-1904C) / 20W (ABK-1002C) / 15W (ABK-650)
• Power supply: AC100V 1φ 50/60Hz (all models)
• Airflow: approx. 2.0 / 0.9 / 0.23 m³/min
• Rated power: approx. 100 VA / 50 VA / 50 VA
• Weight: approx. 40 kg / 15 kg / 5 kg
• Catch bag: Polyester mesh (ABK-1904C, ABK-1002C) / Non-woven (ABK-650)
• Construction: Painted steel body; reflector: SUS430 BA plate
• Accessories: Replacement catch bags (3 / 3 / 10)
