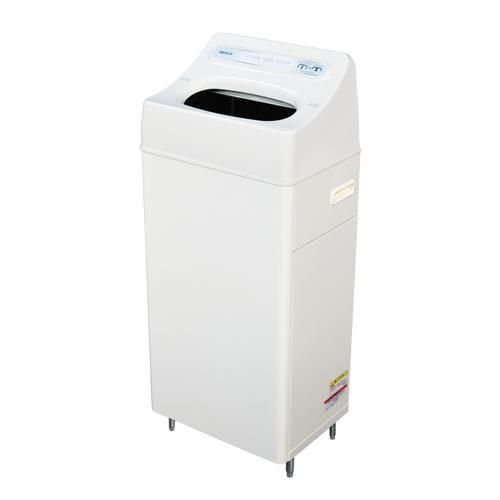

Air dryer AHD-6

Application
Device for hygienic hand drying. Clean air filtered through a HEPA filter is blown at approximately 190 m/sec.

Key features

• Dries hands using HEPA-filtered clean air.
• Equipped with a DC brushless motor to reduce power consumption.
• Built-in sterilization lamp to inhibit microbial growth; lamp automatically turns off during air-jet operation.

Specifications
Model: AHD-6
Filtration efficiency: ≥99.99% for 0.3 μm particles
Main filter: HEPA filter
Prefilter: non-woven fabric filter
Airflow: approx. 1.2 m³/min
Air speed: approx. 190 m/sec
Noise: approx. 80 dBA (measured at 1 m from unit, 1 m from floor, anechoic chamber)
Power supply: AC100V 1φ 50/60Hz
Power consumption: approx. 1,050 W
Apparent power: approx. 1,350 VA
Weight: approx. 30 kg
Construction: Body: painted steel plate; Upper case: antibacterial ABS resin; Drying chamber: stainless steel (SUS304)

Key specifications (summary)

• Model: AHD-6
• Filtration efficiency: ≥99.99% at 0.3 μm
• Main filter: HEPA; Prefilter: non-woven fabric
• Airflow: approx. 1.2 m³/min
• Air speed: approx. 190 m/sec
• Noise: approx. 80 dBA (measurement conditions: 1 m from unit, 1 m from floor, anechoic chamber)
• Power supply: AC100V 1φ 50/60Hz
• Power consumption: approx. 1,050 W; Apparent power: approx. 1,350 VA
• Weight: approx. 30 kg
• Construction: Painted steel body; Upper case: antibacterial ABS; Drying chamber: stainless steel (SUS304)
