Healthcare facility stool ak447

for surgeonsmedicalheight-adjustable

Product description

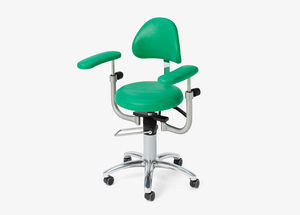

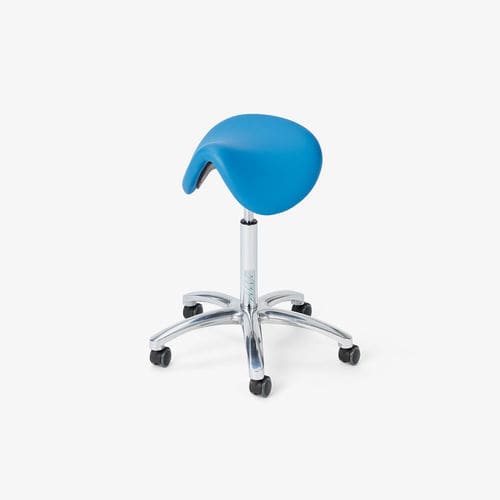

The ak447 doctor's stool features a saddle-shaped seat and is available with or without adjustable armrests and an optional backrest. A five-arm castor cross with five castors provides mobility. Height is adjustable via a gas pressure spring with either foot or hand release. Armrests are adjustable and can be guided by horizontally movable armrest holders. Optionally, pre-shaped multi-directional multi-joint armrests are available for finer forearm/hand support during procedures. The seat can be tilted forward or backward by approximately 10° to set the sitting position. AKRUS upholstery is available in a range of colors. The ak447 is delivered fully assembled and intended for reliable use when employed as specified.

Application areas

• Ophthalmology
• ENT, OMF
• General, plastic & aesthetic surgery

Upholstery colors (selection)

• Combra White
• Creme
• Sand
• Pearl
• Lilac
• Bluegrey
• Cornflower
• Midnightblue
• Yellow
• Orange
• Red
• Oper
• Mint
• Turquoise
• Charcoal
• Black

Technical data (summary)

• Base diameter — 600 mm
• Castor diameter — 50 mm
• Height adjustment — 550–750 mm
• Seat surface (diameter) — 420 mm
• Seat cushion thickness — 80 mm
• Armrest height adjustment — 140–290 mm
• Maximum recommended user weight — 135 kg

Ambient and storage conditions (summary)

• Application air temperature — +10 °C to +40 °C
• Relative humidity (application) — max. 50% non-condensing
• Air pressure — 700–1060 hPa
• Storage without original packaging — temperature: -10 °C to +55 °C; relative humidity: 10%–95% non-condensing; air pressure: 700–1060 hPa
• Storage and transport in original packaging — temperature: -40 °C to +70 °C; relative humidity: 10%–95% non-condensing; air pressure: 700–1060 hPa

Notes
Delivered fully assembled. Accessory options (armrests, backrest, multi-joint armrests) increase adjustability and ergonomic support.

Characteristics / technical specifications

• Saddle seat with approx. ±10° tilt (forward/backward)
• Height adjustment via gas pressure spring; foot or hand release
• Five-arm castor cross with five castors (Ø 50 mm)
• Seat surface diameter: 420 mm; cushion thickness: 80 mm
• Armrest height adjustment: 140–290 mm; horizontally movable armrest holders
• Optional pre-shaped multi-directional multi-joint armrests for forearm/hand support
• Maximum recommended user weight: 135 kg
• Upholstery: AKRUS upholstery available in multiple colors; special colors on request
• Delivery state: fully assembled
