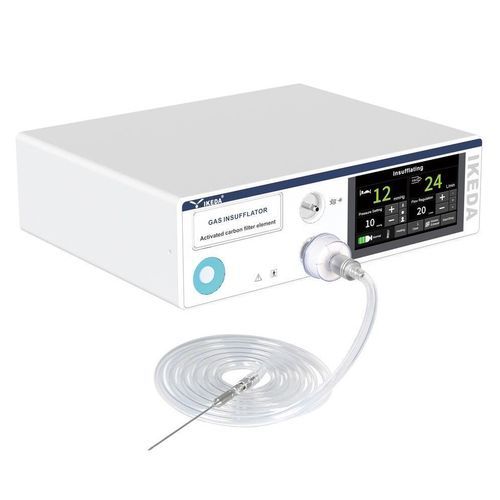

Endoscopy insufflator with gas preheating YKD-9740

with smoke aspirator

Product Profile The IKEDA CO2 Insufflator insufflation unit has a high maximum flow rate and advanced functionality. It enhances performance and reliability in demanding surgical-laparoscopy environments. IKEDA Next-Generation CO2 Insufflator 40L/min Max Flow | Intelligent Heating | Integrated Smoke Evacuation | 7-inch touch screen Featuring 40L/min maximum insufflation flow. The dual-controller system with multiple pressure sensors ensures surgical safety through redundant real-time monitoring. Multi-operation modes accessible via a 7-inch intuitive touchscreen, enabling simplified physician control with pinpoint accuracy. Patented gas heating technology reduces postoperative patient pain by 90%, while integrated smoke evacuation maintains optimal surgical visibility. Main Features - 7-inch smart LCD touch screen - Max flow rate - 40L - Overpressure alarm function - Smoke extraction function - External heating function - Support external device control Product Details Model: YKD-9740 Flow Rate Setting: 10~40L/min Pressure range: 5mmHg~25mmHg Overvoltage alarm: Triggered if intra-abdominal pressure exceeds preset by 1mmHg for more than 2s Overpressure release time: 30s Underpressure supplement time: 30s Gas filtration: ≥90% for particles ≥0.5um Main unit dimensions: 38cm(L)x31.3cm(W)x12cm(H) High-pressure connection pipe length: (2900±50)mm Inflatable tube length: (2500±20)mm
