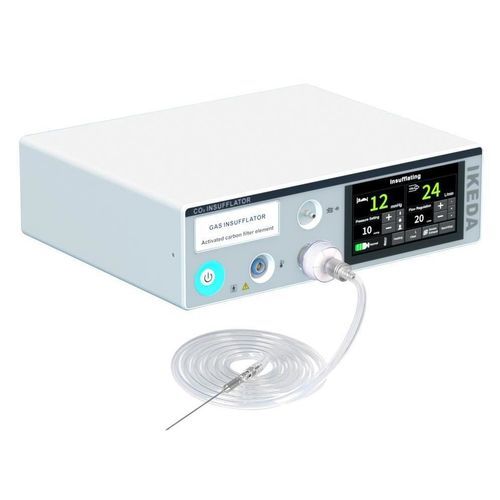

Endoscopy insufflator with smoke aspirator YKD-9750

with gas preheating

Product Profile The IKEDA CO2 Insufflator unit has a high maximum flow rate and advanced functionality. It enhances performance and reliability in demanding surgical-laparoscopy environments. IKEDA Next-Generation CO2 Insufflator 50L/min Max Flow | Intelligent Heating | Integrated Smoke Evacuation | 7-inch touch screen Featuring 50L/min maximum insufflation flow. The dual-controller system with multiple pressure sensors ensures surgical safety through redundant real-time monitoring. Multi-operation modes accessible via a 7-inch intuitive touchscreen, enabling simplified physician control with pinpoint accuracy. Patented gas heating technology reduces postoperative patient pain by 90%, while integrated smoke evacuation maintains optimal surgical visibility. Main Features - 7-inch smart LCD touch screen - Max flow rate - 50L - Overpressure alarm function - Smoke extraction function - External heating function - Support external device control Product Details - Model: YKD-9750 - Flow Rate Setting: 10~50L/min - Pressure range: 5mmHg~25mmHg - Overvoltage alarm: When the intra-abdominal pressure exceeds the preset pressure by 1mmHg and lasts for more than 2s, an overpressure alarm will be issued - Overpressure release: The overvoltage release time is 30s - Underpressure supplement: The undervoltage replenishment time is 30s - Gas filtration: The filtration rate of particles of 0.5um and above in the gas is not less than 90% - Dimensions of the main unit: 38cm(L)x31.3cm(W)x12cm(H) - The length of the high-pressure connection pipe in the external air supply connection assembly: (2900±50)mm - The length of the inflatable tube in the inflatable tube assembly: (2500±20)mm
