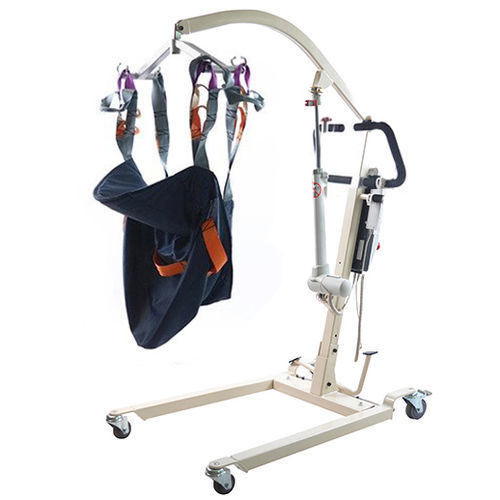

Electric patient lift

on castersportablefor disabled people

Product summary
The electric patient lift is designed for safe transfers and repositioning of immobile or partially mobile patients in home-care and clinical environments. Mobile on castors, it allows lifting from bed, chair or floor and supports a maximum user weight of 150 kg.

Short features

• Mobile base with four wheels (2 rear Ø 100 mm with independent brakes, 2 front Ø 80 mm)
• Electric lifting with removable rechargeable battery and charger included
• Maximum user weight: 150 kg

Detailed features

• 2-year warranty
• Removable battery for off-board charging and fast replacement
• Quick release system for simplified assembly and transport
• Electrical kit: motor, controller, control unit and battery
• Mechanical descent assistance for safe lowering in case of power failure
• Base with arms adjustable in two positions via rear pedals for variable footprint
• Possibility to lower the lifting arm to a low height for floor-to-chair or floor-to-bed transfers
• Ergonomic handles for caregiver maneuvering
• Steel frame with epoxy coating for ease of cleaning and corrosion resistance

Technical specifications

• Maximum user weight: 150 kg
• Wheels: 2 rear wheels Ø 100 mm (with independent brakes), 2 front wheels Ø 80 mm
• Power: removable rechargeable battery, charger included
• Descent assistance: mechanical backup for power failure
• Base: movable arms adjustable in two positions via rear pedals
• Construction: steel with epoxy paint
• Control/electrical components: motor, controller, control unit and battery (electric kit)
• Assembly: quick release system for easy assembly and transport
• Warranty: 2 years
