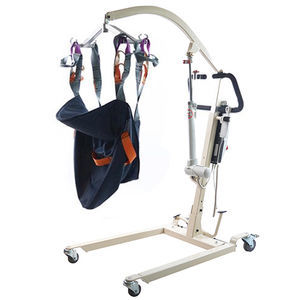

Electric patient lift

on castersportablefor disabled people

Product overview
The bariatric electric patient lift is a mobility aid intended to assist caregivers with lifting, transferring and positioning patients with reduced mobility in home and vehicle environments. It is compatible with slings and enables transfers from beds, chairs and the floor when required.


Short description
Electric bariatric patient lift 180 kg with removable rechargeable battery and electric kit (motor, controller, control unit).


Features

Swiveling wheels for maneuverability

Electric lift driven by motor and controller

Two-year warranty

Removable rechargeable battery and charger

Maximum user weight: 180 kg

Electrical power supply via rechargeable battery

Mechanical descent assistance in case of electrical power failure

Base with movable arms adjustable in two positions via rear pedals

2 rear wheels with independent brakes Ø 100 mm and 2 front wheels Ø 80 mm

Ability to lower the boom for lifting patients from the floor

Ergonomic handles to facilitate caregiver operation

Steel construction with epoxy paint finish

Electric kit includes motor, controller, control unit and battery

Technical specifications

Maximum user weight: 180 kg

Wheels: 2 rear wheels Ø 100 mm with independent brakes; 2 front wheels Ø 80 mm

Power: electric kit (motor, controller, control unit) with removable rechargeable battery and charger

Descent: mechanical descent assistance for power failure

Base: movable arms adjustable in two positions via rear pedals

Construction: steel, epoxy paint finish

Warranty: 2 years

Functionality: enables lowering to a low height for floor lifts; designed for lifting, transport and transfers in home and car environments
