The heating module with manually adjustable electronic regulation and indication of the heating output, including the integral illumination, is designed for local heating of the working place in health facilities where it is necessary to ensure a stabile temperature, such as:
new-born baby treatment
in private paediatricians' ambulances
in observation boxes, accouchement rooms of maternity hospitals and examination tables,
intensive and resuscitation care departments, etc.
The apparatus consists of a metal jacket which is treated on its surface by means of baked powder varnish. The module contains a heating ceramic source controlled by the electronic regulator with the indication of operation and heating output, which can be pre-set manually with the help of a washable membrane keyboard.
The integral illumination source ensures sufficient illumination of the working area for ordinary treatment of patients.
The apparatus is produced in the following modifications:

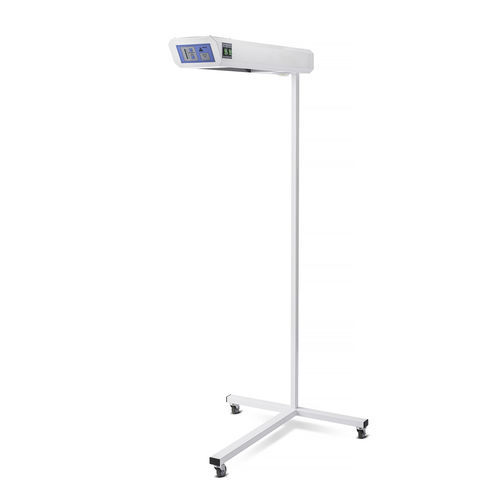

independent heating module VM-94 - mobile stand without patient's bed
independent heating module VM-94 - fixed to a wall without patient's bed
Technical data:
Weight: 20-40 kg (by variants)
Power output: 0 – 600W
Power source: 230V/50-60 Hz
Power: max. 700 W
Class of device: I
