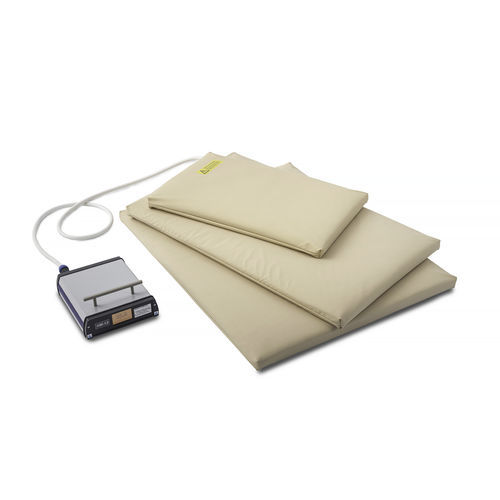

Heated mattress is an optional local heat source for treatment of hypothermic states of patients. The unified design of the device enables its application almost in all fields of health service, intensive and reanimation care units, surgical departments, operating rooms, resuscitation departments, gynaecology, internal medicine departments, birth, children's and neonatal departments.
The main functional parts are electronic temperature regulator and patient's mattress. The regulator maintains the temperature according to required parameters and provides
a constant diagnosis of the circuits.
The heated mattress with a built-in heating system, a set of temperature sensors and a thermal mechanical fuse is connected to the regulator through plastic connector with a safety nut.
Low supply voltage of the mattress of 24V depending on the size provides the high operating safety.
Setting the controller is very user-friendly - using the touch screen. The required operating temperature is set on display. The operator is informed about the current temperature heating pad and the operating status. Excess of the set-up temperature and a possible regulation failures are signaled by optical and acoustic alarms.
This always results in automatic disconnection of heating. Therefore the uncontrolled increase of temperature and the patient injury is prevented. Menu on the touch screen display offers and service information and identify the type of mattress..
Device: class No.: II
Input power: max 80 W
Temperature range: 30 - 38°C
Regulator weight: 2 kg
Supply voltage: 230V/24V/50Hz
Sizes of heated mattresses:
350 x 500 mm
500 x 800 mm
650 x 800 mm
500 x 1200 mm
