Direct digital fluoroscopy system Proxima CS

DRdigitalfor interventional fluoroscopy

Product overview

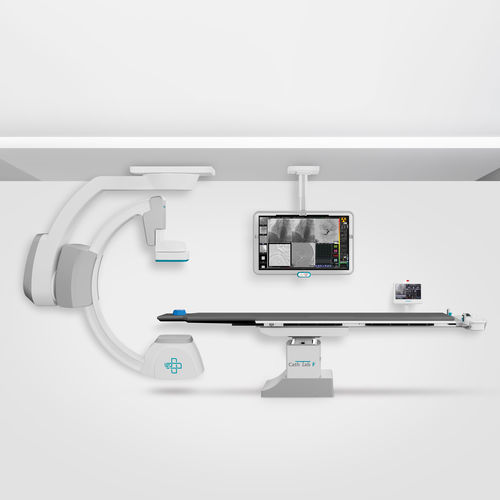

Allengers Proxima CS is a ceiling-suspended cath lab system combining high image performance and dose-reduction functions with a ceiling gantry that enables flexible positioning for a wide range of interventional procedures.

Key features

• Ceiling-suspended gantry configuration
• Model: Proxima CS (Allengers)
• Flat-panel detector options: 20×20 cm and 30×30 cm
• 100 kW dual-inverter X‑ray generator
• 3 MHU liquid-metal bearing X‑ray tube with grid control and accelerated heat dissipation
• Integrated dose-management tools and low-dose acquisition software
• Integrated digital subtraction angiography (DSA) and STENT View visualization
• Upgradeable to rotational and 3D angio scans
• Mono-scan workflow for combined RCA/LCA angiography with single contrast injection
• Proximity-based anti-collision sensors and user-side touch monitor

Applications

• Interventional cardiology (diagnostic and therapeutic angiography)
• Peripheral and vascular interventions
• Image-guided procedures requiring ceiling-suspended configuration and high maneuverability

Technical specifications

• Model: Proxima CS
• Configuration: Ceiling-suspended gantry, multi-directional movement
• X‑ray generator: 100 kW, dual-inverter
• X‑ray tube: 3 MHU, liquid-metal bearing
• Detector: Flat-panel 20×20 cm or 30×30 cm
• Display: 55" high-brightness TFT color monitor; image resolution 1K×1K or 1.5K×1.5K
• Imaging: Direct digital acquisition, DSA, Synergy low-dose acquisition software
• Patient table: 3-axis fixed table with floating carbon-fiber top
• Safety: Pre-programmable positions, anti-collision sensors, AFD positioning display (LAO/RAO/CRA/CAU/SID)
