Anesthetic gas evaporator

isofluranesevoflurane

Short description

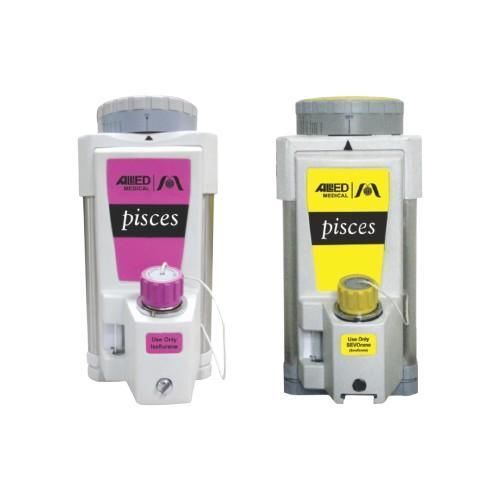

The Meditec Pisces is an agent-specific anaesthesia vaporiser designed for stable output and easy maintenance. Each unit is calibrated on a laser refractometer and is fully flow-, back-pressure-, and temperature-compensated, helping clinicians deliver isoflurane or sevoflurane accurately across a wide range of gas flows.

Product overview
The Pisces vaporiser is engineered for accuracy and convenience in the operating theatre. It is available for isoflurane and sevoflurane, with each unit calibrated for its specific agent on a laser refractometer. Full flow, back-pressure, and temperature compensation help keep output stable under changing conditions, and the vaporiser operates at gas flow rates from 0.2 to 15 litres per minute. Filling options include screw fill, Quik Fill for sevoflurane, and Meditec Fill; the unit is compatible with a Selectatec backbar with interlock or a Drager plug-in. An agent capacity of 250 ± 25 mL is suitable for typical theatre use. The design is precision-engineered and maintenance-free, with an MRI-compatible version available as an option.

Key features

• Agent-specific calibration (each unit calibrated on a laser refractometer)
• Available for isoflurane and sevoflurane
• Flow-, back-pressure- and temperature-compensated for stable output
• Operates across gas flow rates from 0.2 to 15 litres per minute
• Filling options: screw fill, Quik Fill (for sevoflurane), and Meditec Fill
• Compatibility: Selectatec backbar with interlock or Drager plug-in
• Agent capacity: 250 ± 25 mL
• Precision-engineered, maintenance-free design
• Optional MRI-compatible version

Caractéristiques / spécifications techniques

• Product type: Agent-specific anaesthesia vaporiser
• Calibrated on: Laser refractometer (agent-specific calibration)
• Agents supported: Isoflurane, Sevoflurane
• Compensation: Flow, back-pressure, temperature
• Operating gas flow range: 0.2 to 15 L/min
• Filling methods: Screw fill; Quik Fill (sevoflurane); Meditec Fill
• Mounting compatibility: Selectatec backbar (with interlock), Drager plug-in
• Agent capacity: 250 ± 25 mL
• Maintenance: Designed to be maintenance-free
• Options: MRI-compatible version available
