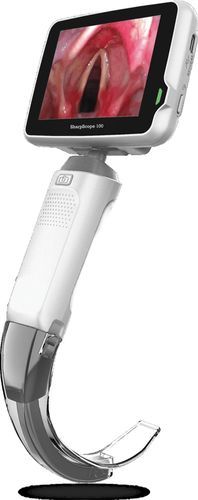

Wide-angle video laryngoscope SharpScope 100

high-definitionwith integrated video monitorsingle use

Product overview
The Allied SharpScope 100 is a portable video laryngoscope for clear visualisation during intubation and airway management. It integrates a 2 MP anti-fog camera with a 3.5" non-reflective touchscreen and uses disposable Macintosh blades to support clinical hygiene.

Detailed description
The SharpScope 100 provides a wide, detailed view of the airway via a 2 MP high-resolution camera with active anti-fogging and a 3.5" non-reflective touchscreen. The display articulates >120° vertically and >270° horizontally to allow ergonomic positioning for the operator. Illumination is delivered by a high-power cold light source. Disposable Macintosh blades are provided for single-patient use. Image capture is simple: a quick press saves a snapshot and a long press records video. Standard internal memory is 16 GB, with an option up to 256 GB. A USB Type-C port supports data transfer and fast charging. The device features an ergonomic handle and delivers up to 4 hours of operation per charge, suitable for use in operating rooms, emergency departments, intensive care units and prehospital settings.

Highlights

• Portable video laryngoscope for intubation and airway management
• 2 MP high-resolution anti-fog camera
• 3.5" non-reflective touchscreen with panoramic view
• Display articulation: >120° up/down and >270° left/right
• High-power cold light source for field illumination
• Disposable Macintosh blades for hygienic single-patient use
• Quick press saves snapshot; long press records video
• Standard 16 GB memory; optional up to 256 GB
• USB Type-C for data transfer and fast charging
• Ergonomic handle; battery life up to 4 hours

Specifications

• Camera: 2 MP, active anti-fogging
• Display: 3.5" non-reflective touchscreen, panoramic field
• Display articulation: >120° up/down; >270° left/right
• Illumination: high-power cold light source
• Blades: disposable Macintosh blades (single-patient use)
• Image capture: quick press saves snapshot; long press records video
• Memory: 16 GB standard; up to 256 GB optional
• Interface: USB Type-C (data transfer and fast charging)
• Battery: up to 4 hours operation
• Form factor: portable; ergonomic handle for comfortable use
