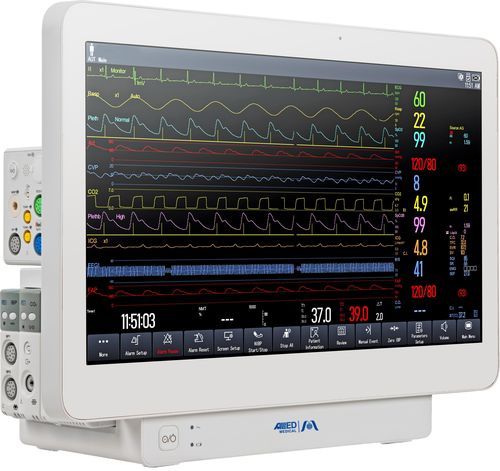

Portable multi-parameter monitor M700

modularbedsideECG

Product Overview
The Allied Meditec M700 Series is a versatile family of patient monitors designed for perioperative, intensive care and ward environments. Models range from compact bedside units to expandable modular systems and central monitoring configurations. The series supports basic vital signs monitoring through advanced anaesthesia and haemodynamic assessment, with options tailored to clinical needs and budget constraints.

Key Capabilities

• Multi-parameter monitoring: ECG, SpO2, NIBP, temperature and optional invasive pressures.
• Anaesthesia monitoring, including depth of anaesthesia measurement.
• Comprehensive waveform displays and trend data for clinical assessment.
• Available as pre-configured models or modular/expandable units to match different workflows.

Operational Benefits

• Flexible selection for basic to advanced monitoring requirements across departments.
• Supports clinical decision-making with clear waveform and trend presentation.
• Customizable alarms and patient-specific thresholds for targeted management.
• Scalable deployment from single-bed to networked central monitoring systems.

M700 Central Monitoring (M700CMS) — Selected Features

• Bi-directional communication with bedside M700 monitors and integration with hospital IT via TCP/IP.
• Windows-based central software with an intuitive user interface for ward and ICU workflows.
• Full digital data transmission and full-disclosure waveform review at the central station.
• Supports wired and Wi‑Fi networking; standard network interface TCP/IP.
• Central station display options: 15", 17", 19", 21" and 24" TFT; optional printer support.
• Large local data storage with patient file review and export capabilities.
• Standard central configuration for 8 bedside monitors; scalable to support up to 128 bedside units.

Applications
The M700 Series is intended for continuous or spot monitoring in operating theatres (anaesthesia), recovery rooms, intensive care, high-dependency units and general wards.

Technical specifications

• Product family: M700 Series.
• Monitoring types: Hemodynamic, Anaesthesia (including depth of anaesthesia), multi-parameter vital signs.
• Configuration options: Pre-configured models or modular, expandable configurations.
• Central monitoring: M700CMS with Windows-based software, TCP/IP networking, wired or Wi‑Fi support.
• Central station displays: 15"/17"/19"/21"/24" TFT monitor options; printer support.
• Data: Full digital transmission, full-disclosure waveform, large storage, data file review and export.
• Scalability: Standard central config for 8 bedside monitors; supports up to 128 units.
• Alarms: Customizable alarms and thresholds per patient.
