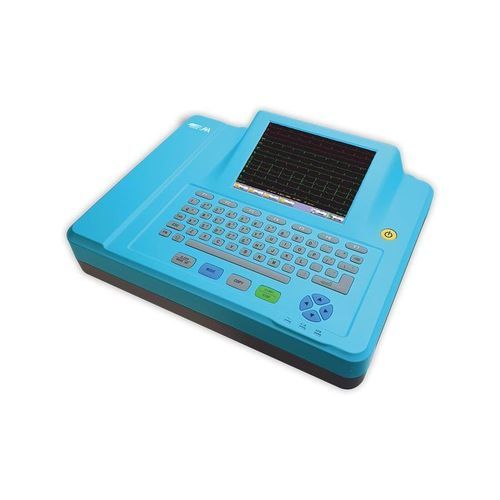

Resting electrocardiograph E417

12-channeldigitalwith printer

Product Overview
The Allied Meditec E417 is an interpretive 12-lead electrocardiograph designed for clinical and portable use. It records all 12 leads simultaneously, provides automatic measurement and interpretation, and integrates a 12-channel thermal printer compatible with A5 paper formats.

Detailed Description
The E417 acquires 12 leads simultaneously via a 24-bit ADC and displays the waveform on a 5.6-inch colour LCD (640 x 480). The unit is operated through an 18-key navigation pad. Automatic measurement and interpretation assist clinical reading; anti-defibrillation and pacemaker detection functions improve signal handling. Recording modes include automatic 12x1, 6x2, 3x4, single-channel, manual capture and a rhythm lead. Printing is performed by a 12-channel thermal printer on A5 thermal paper (rolled or Z-fold). Signal quality is preserved by AC, EMG, low-pass and baseline-drift filters; common-mode rejection exceeds 105 dB. The device stores up to 300 ECGs and supports data export via RS232, USB and network (TCP/IP). A built-in two-hour lithium-ion battery enables portable operation.

Key Features

• 12 simultaneous leads (interpretive 12-lead ECG)
• 5.6-inch colour LCD (640 x 480)
• 18-key navigation pad
• Automatic measurement and interpretation
• Anti-defibrillation and pacemaker detection
• Multiple recording modes: 12x1, 6x2, 3x4, single-channel, manual and rhythm lead
• 12-channel thermal printer; prints on A5 thermal paper (rolled or Z-folded)
• Filters: AC, EMG, low-pass, baseline-drift
• Common-mode rejection >105 dB
• Internal memory: up to 300 ECGs
• Connectivity: RS232, USB, Network (TCP/IP)
• Two-hour lithium-ion battery for portable use

Technical specifications

• Model: E417
• Channels: Interpretive 12-lead ECG
• ADC: 24-bit converter
• Display: 5.6-inch colour LCD, 640 x 480 resolution
• Navigation: 18 function keys
• Printer: 12-channel thermal printer, A5 thermal paper (rolled / Z-folded)
• Recording formats: Automatic 12x1, 6x2, 3x4; single-channel; manual; rhythm lead
• Filters: AC, EMG, low-pass, baseline-drift
• Common-mode rejection: >105 dB
• Memory: stores up to 300 ECGs
• Connectivity: RS232, USB, network interface (TCP/IP)
• Battery: 2-hour lithium-ion battery
