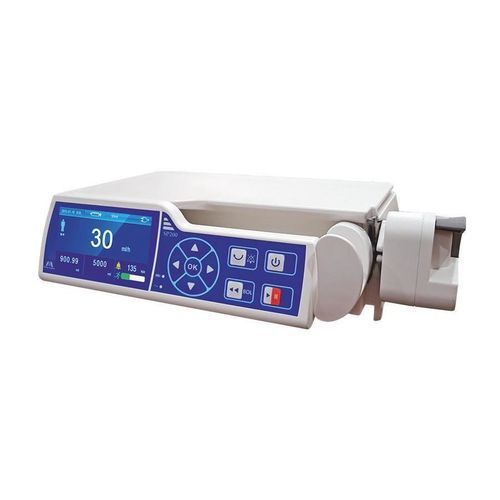

1-way syringe pump SP200

programmablewith touch screenautomatic

Product overview
The Allied Meditec SP200 is a syringe infusion pump designed for precise, controlled delivery across general, critical care and neonatal settings. It combines a 3.5-inch colour touchscreen, dual‑CPU architecture for system redundancy and automatic syringe size detection to support diverse clinical workflows.

Key features

• 3.5-inch colour touchscreen with a mobile-style interface for intuitive operation
• Dual-CPU design for system safety and redundancy
• Automatic syringe size detection: supports 2 mL (optional), 5, 10, 20, 30, 50 (or 60) mL
• Anti-bolus protection limiting unintended delivery to less than 0.05 mL after occlusion release
• Fast-start function to minimise start-up delay
• Multiple infusion modes: rate, volume‑time, dosage, R‑T, loading dose, sequence, intermittent, ramping, relay
• User-configurable occlusion pressure and comprehensive audio/visual alarms
• Flow rate accuracy within ±2%

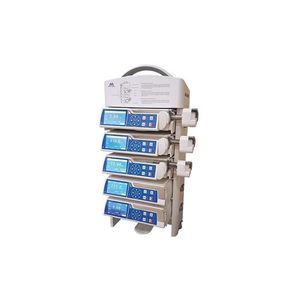

• Stackable in multiples of three; compatible with Meditec IC20 docking station

Intended clinical applications

• General infusion therapy
• Critical care and intensive care units (ICU)
• Neonatal units requiring high accuracy and safety

Technical specifications

• Model: SP200
• Display: 3.5-inch colour touchscreen
• Processor: Dual‑CPU architecture for safety redundancy
• Automatic syringe size detection: 2 mL (optional), 5, 10, 20, 30, 50 (or 60) mL
• Infusion modes: rate; volume‑time; dosage; R‑T; loading dose; sequence; intermittent; ramping; relay
• Anti-bolus protection: limits unintended delivery to less than 0.05 mL after occlusion release
• Flow rate accuracy: within ±2%
• Occlusion pressure: adjustable (user-configurable)
• Alarms: comprehensive set of audio and visual alarms
• Stacking: supports stacking in multiples of three
• Docking: compatible with Meditec IC20 docking station
• Special functions: fast-start; automatic syringe size detection
