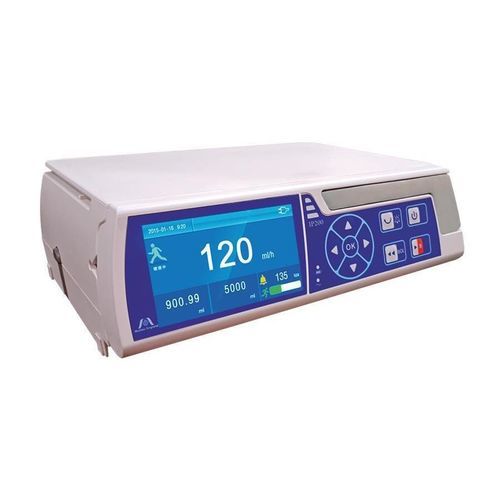

Volumetric infusion pump IP200

1-wayanesthesiafor drug delivery

Product Overview
The Allied Meditec IP200 is a microprocessor-controlled volumetric infusion pump that accurately controls the delivery rate of a disposable IV set. Suitable for internal medicine, surgery, paediatrics, obstetrics and intensive care, it offers a colour touchscreen, a high-strength PBT shell, precise stepper-motor control and anti-bolus protection.

Detailed Description
The Allied Meditec IP200 is a high-precision drip-type volumetric infusion pump designed for continuous, precisely controlled delivery at a constant rate. A sophisticated stepper motor and drive system employs 256 sub-drive programs, with motor accuracy down to approximately 36.6 nanometres per step and a resolution of 0.01 mL/h. This precision is suitable for toxic, anaesthetic and high-accuracy neonatal infusions. The shell is made from PBT plastic that resists corrosion and reduces the risk of fluid leakage. Flow rate ranges from 0.10 to 2000 mL/h with a deviation of ±2%. The pump supports stacking in multiples of three and can be interfaced with the Allied Meditec IC20 workstation.

Suitable clinical environments

• Internal medicine
• Surgery
• Paediatrics
• Obstetrics
• Intensive Care Unit (ICU) / Coronary Care Unit (CCU)

Safety & monitoring features

• Anti-bolus protection to limit unintended fluid delivery
• Bubble detection
• Adjustable occlusion pressure
• Full alarm set for comprehensive event notification
• Online titration support

Performance and mechanics

• Stepper motor with 256 sub-drive programs
• Motor accuracy: approximately 36.6 nanometres per step
• Minimum resolution: 0.01 mL/h
• Flow rate range: 0.10–2000 mL/h
• Flow deviation: ±2%

Materials & design

• High-strength PBT shell (corrosion resistant, minimizes fluid leakage)
• Colour touchscreen interface
• Designed to stack in multiples of three for bedside flexibility
• Interfaces with Allied Meditec IC20 infusion workstation (docking/stacking solution)

Caractéristiques / spécifications techniques

• Model: IP200
• Type: Volumetric infusion pump (drip-type)
• Control: Microprocessor-controlled, precise stepper-motor drive
• Stepper motor programs: 256 sub-drive programs
• Motor accuracy: ~36.6 nm per step
• Minimum resolution: 0.01 mL/h
• Flow rate range: 0.10 – 2000 mL/h
• Flow rate deviation/accuracy: ±2%
• Shell material: PBT plastic (corrosion-resistant)
• Safety features: Anti-bolus, bubble detection, adjustable occlusion pressure, comprehensive alarm set, online titration
• Display: Colour touchscreen
• Stacking: Supports stacking in multiples of three
• Integration: Can link to Allied Meditec IC20 workstation for multi-pump docking and monitoring
