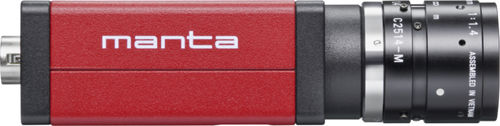

Medical camera Manta G-031
VGACCDnear-infrared

medical camera
medical camera
medical camera
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
VGA
Sensor type
CCD
Light source
near-infrared

Description

Manta is Allied Vision’s most versatile GigE Vision camera series. It provides the largest choice of image sensors and its advanced feature set simplifies the setup of multi-camera applications. With its modular hardware concept, Manta offers nearly endless configuration possibilities to adapt the camera to your application. SPECIFICATIONS Interface - IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) optional Resolution - 656 (H) × 492 (V) Sensor - Sony ICX618 Sensor type - CCD Progressive Sensor size - Type 1/4 Pixel size - 5.6 µm × 5.6 µm Shutter mode - Global shutter Lens mounts (available) - C-Mount, CS-Mount Max. frame rate at full resolution - 125 fps ADC - 12 Bit Image buffer (RAM) - 32 MByte IMAGING PERFORMANCE Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Contact Sales or AE for more information. Quantum efficiency at 529 nm - 71 % Temporal dark noise - 12.9 eˉ Saturation capacity - 17900 eˉ Dynamic range - 62.4 dB Absolute sensitivity threshold - 13.5 eˉ OUTPUT Bit depth - 8/12 Bit Monochrome pixel formats - Mono8, Mono12, Mono12Packed Raw pixel formats - BayerRG8, BayerRG12Packed, BayerRG12 OPERATING CONDITIONS/DIMENSIONS Operating temperature - +5 °C to +45 °C ambient (without condensation) Power requirements (DC) - 8 to 30 VDC AUX or IEEE 802.3af PoE Power consumption - External power: 3.7 W at 12 VDC | Power over Ethernet: 4.3 W Mass - 200 g; 210 g (PoE models)
