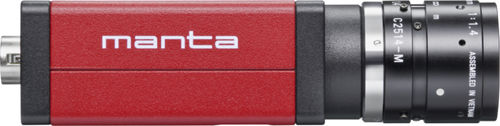

medical camera / digital / CCD medical camera / digital / CCD - MANTA G-504


  • Applications:


  • Technology:


  • Sensor type:



9.2 fps at full resolution
Power over Ethernet option
Angled-head and board level variants
Video-iris lens control

5 Megapixel GigE Vision camera with Sony ICX655 CCD sensor
Manta G-504 is a machine vision camera that incorporates the high quality Type 2/3 (11.016 mm diagonal) Sony ICX655 CCD sensor. At full resolution, this camera runs at 9.2 frames per second. With a smaller region of interest, higher frame rates are possible. The Manta is one of Allied Vision's versatile GigE Vision cameras with a wide range of features. Particular highlights are the three look-up tables, sophisticated color correction capabilities, a robust metal housing, and many modular options. By default monochrome models ship with protection glass B 270 (ASG) and color models ship with an IRC Hoya C-5000 IR cut filter.

Benefits and features:
Monochrome (G-504B) and color (G-504C) models
GigE Vision interface with Power over Ethernet option
Screw mount RJ45 Ethernet connector for secure operation in industrial environments
Supports cable lengths up to 100 meters (CAT-5e or CAT-6)
Comprehensive I/O functionality for simplified system integration
Popular C-Mount lens mount
Easy camera mounting via standard M3 threads on top and bottom of housing or optional tripod adapter
Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third party image-processing libraries.
