iliac artery stent / cobalt-chromium
Isthmus Logic

Add to MyMedicalExpo favorites
Compare this product
iliac artery stent / cobalt-chromium iliac artery stent / cobalt-chromium - Isthmus Logic
{{requestButtons}}

Characteristics

  • Type:

    iliac artery

  • Material:

    cobalt-chromium

Description

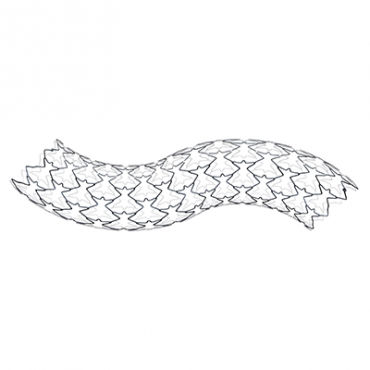

Isthmus Logic is a Cobalt-Chromium stent with Bio Inducer Surface technology for the treatment of iliac vessels.

Isthmus Logic is a Cobalt-Chromium stent with Bio Inducer Surface technology for the treatment of iliac vessels.
Proven bio and haemo-compatibility enabled by the Bio Inducer Surface coating, which accelerates the rate of endothelization and reduces thrombogenicity
Uniform radial force and excellent scaffolding with an unique cell architecture
Platinum markers and no stent foreshortening allow unmatched placement accuracy and visualization.
TECHNICAL DATA
PERIPHERAL STENT
Stent diameters: 6 - 10 mm
Stent lenghts: 19 - 59 mm
Stent material: L605 CoCr alloy
Strut surface coating: Bio Inducer Surface
2 platinum radiopaque markers at stent ends
No stent foreshortening upon expansion
DEVICE SPECIFICATIONS
Over The Wire (OTW)
Introducer sheath compatibility: 6F
Guidewire compatibility: 0.035"
Usable Catheter Lenght - UCL: 75 & 135 cm
Nominal Pressure: 7 - 8 atm
Rated Burst Pressure: 10 - 12 atm
