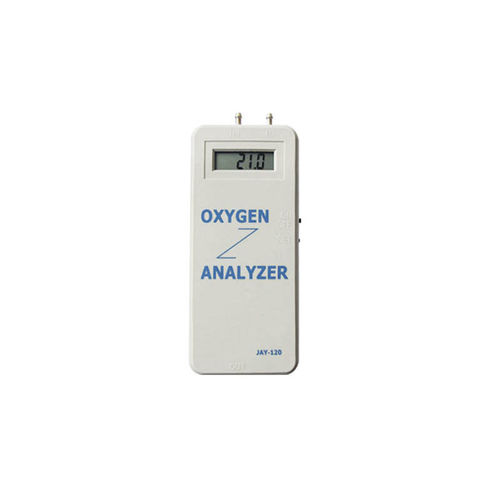

Pressure analyzer JAY-120

oxygenfor medical devicesfor medical applications

AmcareMed Oxygen Analyzer Designed to measure oxygen concentration, oxygen flow and outlet pressurefor PSA oxygen concentrator. The oxygen analyzer measures oxygen concentration flow using ultrasound technology. lt has the characteristics of high accuracy, strong anti-interferenceability, rapid response, long-term stability, no need for regulara djustment, and long lifespan. The pressure test adopts imported modules with high accuracy. Specifications * Pressure detection range: 0-21 Psi * Operating Voltage: DC 9V * Pressure Detection Accuracy: ±1 Psi * Flow Detection Range: 0-10 L/min * Dimension: 185*80*31mm * Flow Detection Accuracy: ±0.2 L/min * Operating Temperature: 5°C~55°C * Oxygen Concentration Detection Range: Range (V/V) 21.0-96.0 % * Storage Temperature: -5°C~65°C * Oxygen Concentration Detection Accuracy: 土2% * Relative Humidity: 5~85%RH
