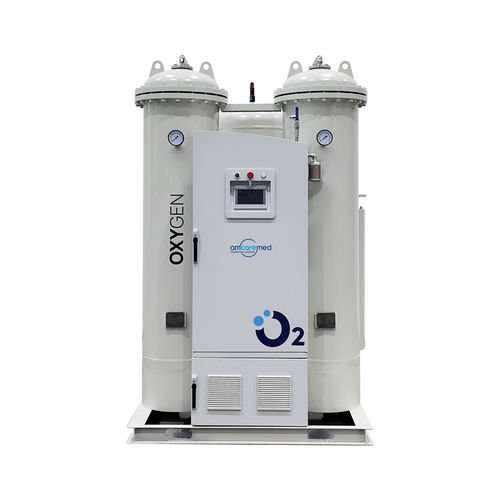

Medical oxygen generator OY-50

fixedPSAhigh-purity

AmcareMed medical oxygen generator system could supply pure oxygen for all kinds of hospitals and clinics continuously. Medical Oxygen Generators System uses Pressure Swing Adsorption (PSA) technology to separate the oxygen from the air. Our Oxygen plant equipment put the air as raw material, zeolite molecular sieve as adsorbent, under the normal temperature low pressure, using the selectivity of zeolite molecular sieve for oxygen adsorption. The purity is 93%±3%. In addition to the existing oxygen generators, we can also customize the oxygen generator system according to the installation conditions of the customer site and can be installed on-site for customers. Working Principle The oxygen production process of the medical oxygen generator is shown in the figure. The detailed work process is the medical air which after dryer and purification, by switching valve into the absorption tower. In the adsorption tower, oxygen gas was gathered at the top of the adsorption tower, then into the oxygen storage tank. Through the different filters to remove dust, bacteria, and peculiar smell, achieve the quality oxygen gas. Our Oxygen Concentrator allows the hospital to have stand-alone oxygen production capability directly on the facility site. Specifications *Oxygen Generators Capacity: 3Nm3/h~50Nm3/h( single unit) *Medical Oxygen Purity: 93%±3% (with PSA technology) *Power supply: 380V/220V *Input power: 5-75KW *Very simple and easy to installed *Latest components to ensure smooth performance *Oxygen for medical use is the best alternative to liquid supply for filled cylinders *Out Pressure: 3~0.55 Mpa (adjustable) *Operation Noise: ≤85dB(A)
