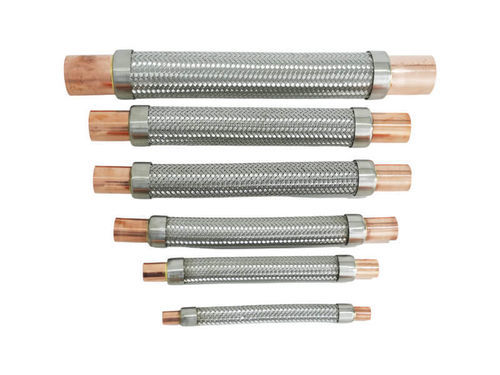

Anti-vibration connector SF series

for vacuum pumpsfor compressorsflexible

Product overview
The Vibration Absorber comprises a corrugated stainless steel inner hose, an external stainless steel braided reinforcement layer and metal end connections. This flexible assembly compensates for limited movements during equipment start-up and operation while maintaining a sealed connection to the pipeline. It is designed for installation between compressors, vacuum pumps or other vibration-generating equipment and rigid piping systems.

Specifications

• Corrugated hose: SUS 316L stainless steel
• Braided reinforcement: SUS 304 stainless steel
• Connection tube ends: TP2 copper (for brazing)
• Provides flexibility and vibration damping
• High pressure resistance suitable for pipeline applications
• Reduces vibration and noise transmission
• Protects rigid piping and connected components from cyclic mechanical stress
• TP2 copper tube ends facilitate brazed connection
• Suitable for compressor discharge and suction pipeline connections
• Alternative materials and connection configurations available on request

Models
Model | Size (inch) | Size (mm) | Working Pressure (psig) | Burst Pressure (psig)
SF-1A | 1/4" | 6.35 | 650 | 3250
SF-1 | 3/8" | 9.52 | 650 | 3250
SF-2 | 1/2" | 12.7 | 650 | 3250
SF-3 | 5/8" | 15.88 | 650 | 3250
SF-4 | 3/4" | 19.05 | 650 | 3250
SF-5 | 7/8" | 22.23 | 650 | 3250
SF-6A | 1" | 25.4 | 650 | 3250
SF-6 | 1-1/8" | 28.58 | 650 | 3250
SF-7 | 1-3/8" | 34.93 | 650 | 3250
SF-8 | 1-5/8" | 41.28 | 650 | 3250
SF-9 | 2-1/8" | 53.98 | 650 | 3250
SF-10 | 2-5/8" | 66.68 | 460 | 2300
SF-11 | 3-1/8" | 79.38 | 380 | 1900
SF-12 | 3-5/8" | 92.08 | 300 | 1500
SF-13 | 4-1/8" | 104.98 | 300 | 1500

Technical characteristics

• Inner corrugated hose material: SUS 316L stainless steel
• External braided reinforcement: SUS 304 stainless steel
• Connection tube ends: TP2 copper (for brazing)
• Engineered to absorb vibration and reduce noise transmission to rigid piping
• Protects connected components from repeated mechanical stress
• Applicable to compressor discharge and suction pipeline connections
• Working and burst pressures vary by model (see Models table)
• Multiple model sizes available (SF-1A through SF-13)
• Alternative materials and connection configurations available on request
