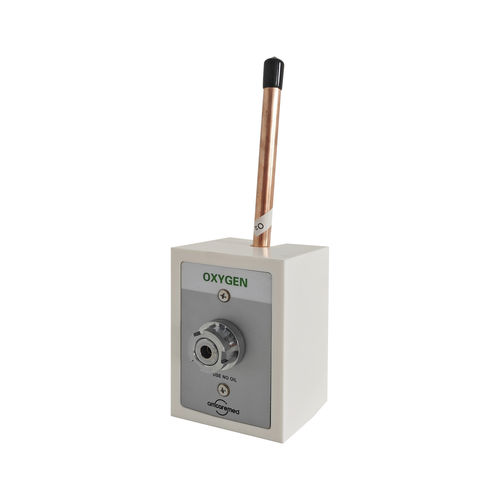

French Standard Gas Outlets
AFNOR (French standard) medical gas terminal is installed at medical gas systems delivery points. Only accept AFNOR quick connect adapters. The fast connection of (flow meter, vacuum regulator…) Different gas type with different quick connects adapters. Outlets available Wall mounting, Bead Head mounting and Pendant mounting.
Specifications
Gas Type: O2, MEDICAL AIR, VAC, N2O, N2, CO2 are available
O.D. 10 mm copper pipeline
ISO32 color-coded for easy gas identification
100% tested for flow, leaks and cleaned
Wall mounting, bead head mounting and Pendant mounting available
Models Number
Ordering Information
Gas Service
Wall mounting
Bedhead (console) mounting
Pendant mounting
OXYGEN
FS-WAL-OXY
FS-CON-OXY
FS-PA-OXY
MEDICAL AIR
FS-WAL-MA
FS-CON-MA
FS-PA-MA
MEDVAC
FS-WAL-VAC
FS-CON-VAC
FS-PA-VAC
NITROUS OXIDE
FS-WAL-N2O
FS-CON-N2O
FS-PA-N2O
NITROGEN
FS-WAL-NIT
FS-CON-NIT
FS-PA-NIT
CARBON DIOXIDE
FS-WAL-CO2
FS-CON-CO2
FS-PA-CO2
