Gas pressure regulator Laboratory Gas Outlet Point

laboratoryin-lineintegrated

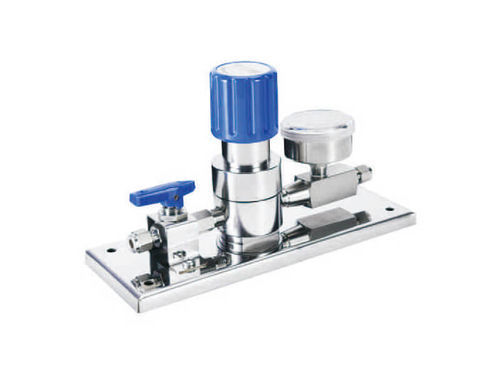

AmcareMed laboratory gas outlet point is an integrated two-stage pressure regulator group with ball valve and reducing valve on one panel. Product Details: - The stainless steel laboratory outlet point is used for secondary pressure regulation of gas line outlet connection instruments. It can be installed and fixed on the wall and is suitable for inert, corrosive, toxic, and combustible gases. - The pressure gauge is installed with back connection for easy disassembly. Clean workshop assembly and testing, the pressure reducer and pipeline are 100% tested, suitable for use in laboratories, gas analysis, and other high-purity gases. Specifications: - Inlet pressure: 40bar, 25bar, 16bar, 10bar - Outlet pressure: 0~25bar - Safety test pressure: 1.5 times the operating pressure - Working temperature: -40F～+165F (-40℃～+74℃) - Leak rate: 2×10^8 atm cc/sec He - Materials in contact with gas media: SUS316L, Hastelloyor, PCTFE, PTFE - CV value: 0.1, 0.15 - Inlet and outlet connectors with various specifications available Applications: - Experiments such as gas chromatography and atomic absorption - Laboratories for biotechnology, food, pharmaceuticals, etc. - Test, analysis, and other equipment - Semiconductor manufacturing - Photovoltaic and new material equipment - Experimental hydrogen and other gas systems Technical Characteristics / Specifications: - Integrated two-stage pressure regulator group - Ball valve and reducing valve on one panel - Wall-mountable - Suitable for inert, corrosive, toxic, and combustible gases - Back connection pressure gauge for easy disassembly - Clean workshop assembly and 100% tested pressure reducer and pipeline - Materials: SUS316L, Hastelloyor, PCTFE, PTFE - Inlet pressure options: 40bar, 25bar, 16bar, 10bar - Outlet pressure: 0~25bar - Safety test pressure: 1.5x operating pressure - Working temperature: -40F to +165F (-40℃ to +74℃) - Leak rate: 2×10^8 atm cc/sec He - CV value: 0.1, 0.15 - Various inlet and outlet connector specifications available
