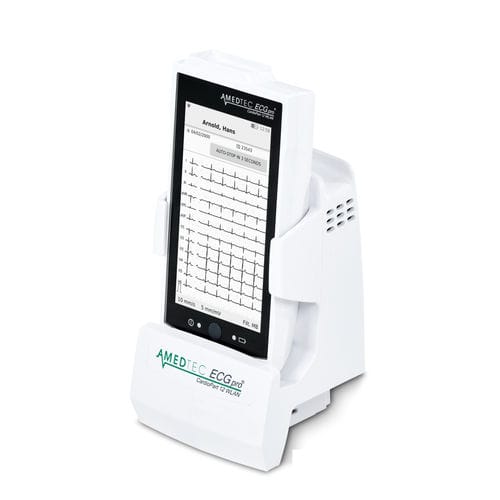

Resting electrocardiograph CARDIOPART 12 WLAN
12-channeldigitalwireless

resting electrocardiograph
resting electrocardiograph
Add to favorites
Compare this product


Characteristics

Applications
resting
Number of channels
12-channel
Technology
digital
Connectivity
wireless
Screen size (inches)

12.7 unit

Description

CARDIOPART 12 WLAN CardioPart WLAN - AMEDTEC A CONVINCING WORKFLOW WIRELESS, ROBUST, ULTRAMOBILE AND HYGIENIC In daily routine, ECG machines need to be wheeled around hospitals to collect ECG at the bedside. This can often be difficult and time consuming requiring the use of elevators. The AMEDTEC solution: Is a 12-lead resting ECG which fits into your pocket. Its compact design is equipped with a brilliant display and available on a 24/7 basis. Chargeable using the associated docking stationCOMPONENTS Patient cable or suction electrode system ACCESSORIES Docking station Patient cable Adhesive electrodes Carrying bag made of hygienic, antibacterial material Wall and VESA mount TECHNICAL DATA Sampling rate - 16 kHz on each of the 10 electrodes A/D converter - 24-bit ADU Resolution - 1 μV/LSB [0,01 mm] Pacemaker detection - Digital monitoring of all the electrodes Electrode test - ECG preview, noise analysis Patient cable connector - 15-pin D-sub for 10-wire patient cable Display - High-resolution 12.7 cm (5”) OLED touch screen display Network interfaces - WLAN (802.11b/g/n, 2,4 GHz), LAN (10/100Mbit, RJ45)
