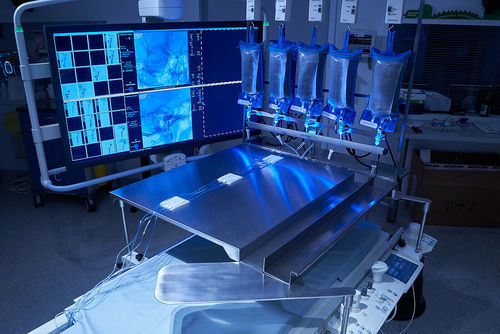

Table-mounted instrument table Chapot®

stainless steelaluminiummanuel

Product overview
The Chapot table is a height‑adjustable operating‑table attachment designed to provide ergonomic support during thrombectomy procedures. Developed in cooperation with Prof. Dr. med. René Chapot and AMTRION, the system is certified as a medical device and intended for clinical use.

Key benefits
The Chapot table enables neuroradiologists to maintain an ergonomically favorable working posture with direct visibility of essential devices and infusions. Integrated hose management and stabilizing channels improve safety and organization in the procedural area.

Key features

• Height‑adjustable tray with hose management system (multi‑position adjustment during procedures)
• Swiveling, height‑adjustable tray with hand stabilization
• Infusion rack at foot end with Fluid‑Control and illuminated drip chambers for fluid level monitoring
• Infusion rack with 5 dedicated hooks + 1 universal screw‑in hook
• LED light strip: adjustable height and tilt, three intensities to illuminate peripheral drip chambers
• Mounting on EU and US standard rails (universal compact clamp)
• Integrated stabilizing channels to guide catheter systems securely during exchanges
• Smooth stainless steel surfaces: corrosion‑resistant and easy to clean
• Maintenance‑free, long service life, Made in Germany, designed & engineered by AMTRION

Functional description
The Chapot table is mounted to the operating table via fixed standard rails and sits above the patient’s legs. It organizes and secures infusion lines, prevents air locks and kinking, and optionally signals low fluid levels (Fluid Control). Illuminated drip chambers enable continuous visual control of infusions. Ergonomic elements (hand rest, tray area, height adjustability) reduce strain during prolonged interventions.

Additional information

• Developed in cooperation with Prof. Dr. Chapot; market readiness achieved 2018
• Certified as a Class I medical device
• Certified to DIN EN ISO 13485

Characteristics / Technical specifications

• Use case: Mounting above the operating table to provide ergonomic support for thrombectomy
• Composition: Height‑adjustable tray with hand stabilization
• Optional additions: Infusion rack, 5× Fluid Control, LED light strip
• Materials: Stainless steel, aluminium, POM, PVC, PA
• Infusion rack weight: 15.1 kg
• Tray with height adjustment weight: 25.9 kg
• Product classification: Medical device Class 1
• Approval: CE
• Approved in: AF, AS, AD, AO, AI, AQ, AG, GQ, AW, BS, BB, BE, BZ, BJ, BM, BO, BW, IO, BN, BF, BI, BT, KY, CL, CK, CW, DK, DE, DM, DO, DJ, TL, CI, ER, FK, FO, FJ, FI, FR, GF, PF, GA, GM, GE, GD, GR, GL, GP, GU, GY, GN, GW, HT, HM, HK, IQ, IE, IS, IT, JM, YE, CM, CV, KI, CC, KM, CD, CG, KW, LS, LB, LR, LY, LI, LU, MO, MG, MW, MV, ML, MT, MH, MQ, MR, MU, YT, MK, FM, MD, MC, MN, MS, MZ, NA, NR, NC, NL, NE, NU, KP, MP, NF, NO, AT, PS, PW, PG, PY, PN, PL, PT, PR, QA, RW, LC, MF, PM, VC, SB, ZM, WS, SM, ST, SE, SN, SC, SL, SX, SI, SO, GS, ES, SH, SD, SS, SR, SZ, TG, TK, TO, TT, TD, TN, TM, TC, TV, AE, UG, US, VI, VU, VA, WF, CX, EH, CF, ZW, CY
• Marking: RoHS/REACH compliant
• Mounting with universal compact clamp: EU standard rail (25 x 10 mm); US standard rail (28.6 x 9.5 mm)
