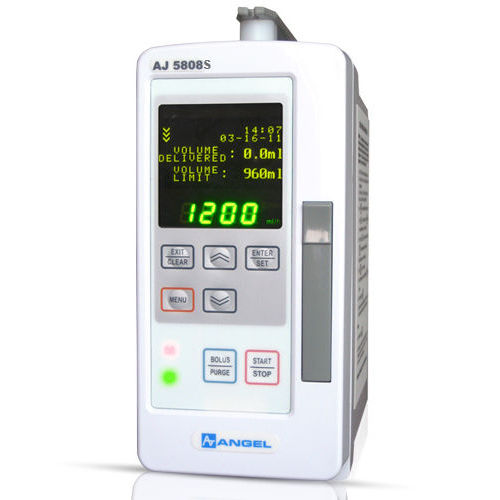

1-channel infusion pump AJ 5808

1-channel infusion pump
1-channel infusion pump
Add to favorites
Compare this product


Number of channels
Type infusion
Patient type
adult, pediatric


AJ 5808-S INFUSION PUMP WITH SIMPLIFIED KEYPAD Volumetric infusion pump delivers intravenous fluids and medication to patients in hospitals, outpatient surgical centers, hospices, nursing homes, and in ambulances. It is widely used throughout the hospitals and care centers including in the emergency room, ICU, CCU, labor and delivery, and in pediatric units. Main features: OLED display with improved brightness and contrast than LCD screens Viewing the event log with time and date Ability to operate the pump with IV sets or other marks designated Two modes of infusion Specifications Infusion rate range 0.1-1200 ml/h (or up to 200 drops/min) Infusion modes • ml/h • Drop/min • Infusion time limit * • Patient weight * Volume to be infused 1 - 9999 ml Bolus rate range 1 - 1200 ml/h Bolus volume 1 - 9999 ml Accuracy ± 2% on the pump only (± 5% with I.V set) Occlusion sensitivity adjustment High, Medium, Low, Lowest 0.04 MPa -0.16 MPa / 5.8 PSI ~23.2 PSI KVO (Keep Vein Open) 0.1 ml/h – 3 ml/h (depends on the flow rate) Built-in infusion rates memory 10 preset infusion modes memory Built-in multi-languages display English, Spanish, French, Italian Alarm volume adjustment High, Medium, Low Alarms • Door open • Occlusion (up & down) • Power source change • Start reminder • Infusion completed • I.V set disengaged - • Empty bag • Initialization error • Drive mechanism error • Air-in line • Battery low • Battery depleted Event log 400 + events Safety protection • Anti-free flow protection • Automatic keypad lock • Audible & visual alarms • Password protection Power supply AC 100- 240V 50/60 Hz; DC 12V
