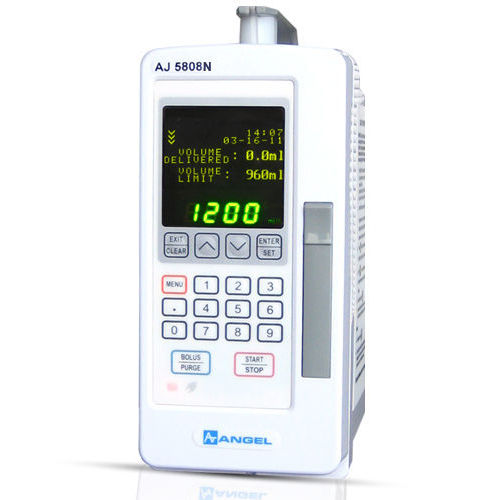

1-channel infusion pump AJ 5808A

volumetricadultpediatric

AJ5808A INFUSION PUMP WITH NUMERIC KEYPAD volumetric infusion pump delivers intravenous fluids and medication to patients in hospitals, outpatient surgical centers, hospices, nursing homes, and in ambulances. It is widely used throughout the hospitals and care centers including in the emergency room, ICU, CCU, labor and delivery, and in pediatric units. Main features: • OLED display with improved brightness and contrast than LCD screens • Viewing the event log with time and date • Ability to operate the pump with IV sets or other marks designated • Four modes of infusion Specifications Infusion rate range 0.1-1200 ml/h (or up to 200 drops/min) - Alarms Alarms • Door open • Occlusion (up & down) • Power source change • Start reminder • Infusion completed • I.V set disengaged - • Empty bag • Initialization error • Drive mechanism error • Air-in line • Battery low • Battery depleted Infusion modes • ml/h • Drop/min • Infusion time limit * • Patient weight * Volume to be infused 1 - 9999 ml - Event log 400 + events Bolus rate range 1 - 1200 ml/h - Safety protection • Anti-free flow protection • Automatic keypad lock • Audible & visual alarms • Password protection Bolus volume 1 - 9999 ml Accuracy ± 2% on the pump only (± 5% with I.V set) - Power supply AC 100- 240V 50/60 Hz; DC 12V Occlusion sensitivity adjustment High, Medium, Low, Lowest 0.04 MPa -0.16 MPa / 5.8 PSI ~23.2 PSI - Battery Built-in rechargeable sealed Pump will operate 3 hrs @ 25 ml/h from fully charged battery KVO (Keep Vein Open) 0.1 ml/h – 3 ml/h (depends on the flow rate) - Safety approvals CE 0197, type CF, IPX1 2.9 kg / 6.4 lbs
