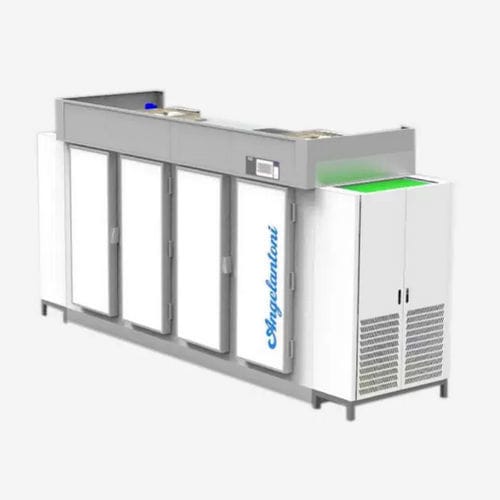

Climatic test cell CE series

temperature stability4-door

The line of prefabricated cells designed by ALS offers large-scale storage solutions, maintaining high efficiency and performance in temperature stability and thus ensuring the perfect preservation of the stored product. These cells are designed to permanently store large batches of pharmaceutical products (vaccines and drugs that are unstable at room temperature) and foodstuffs in a temperature range of -20° to -70°C. The following two models represent the line: CE 4000 3/ULT DI CE 6000 4/ULT DI The load-bearing structure is made up of prefabricated panels, assembled, in a pre-painted galvanized steel sheet, with the inside made of AISI 304 stainless steel sheet (the outside is also available on request). - No. 3 service doors with latches and special rubber seals for CE 4000 3/ULT DI model - No. 4 service doors with latches and special rubber seals for CE 6000 4/ULT DI model The installation of electric heating elements on the seal and rebate ensures that no ice is formed. The insulation is obtained by injecting polyurethane foam under high pressure ('sandwich' technique). The cabinet is complete with redundant refrigeration and an electrical system that will alternate in operation to ensure constant and equal operation over time. This system is based on a special cascade cycle using two semi-hermetic compressors. Equipped with two latest-generation boards, full-color display, touch-button interface complete with the parameter recording system. These can be transferred to computers via USB, or via WiFi/Ethernet/3G network technologies, with the possibility of also transferring and storing them on CLOUD servers.
