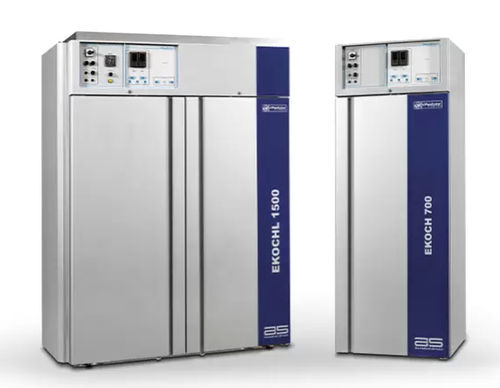

Climatic test cell EKOCH

thermostatictemperaturehumidity

The climate chamber line by Angelantoni Life Science represents a range of thermostatic and climate cabinets, dedicated to pharmaceutical industries or laboratories carrying out tests on pharmaceutical products, research facilities and laboratories for cell cultures, plant growth, insects, analysis of solutes and solvents, etc. These machines are designed to perform temperature and humidity tests on electronic components and equipment. They are also suitable for temperature and humidity tests on industrial or pharmaceutical products. The EKOCH series chambers are designed to control the temperature in the range from -10°C to +60°C and relative humidity between 20 and 90% RH (in the temperature range +10°C/+50°C). The range has three volumes: 700, 900 and 1500 liters. The EKOCH 900P and EKOCH 1500P are supplied as standard with a programmable microprocessor to generate T and RH ramps while all other models are equipped with standard controllers. The line of climate chambers has a supporting structure in pre-painted grey sheet metal, a self-closing service door in pre-painted grey sheet metal, complete with magnetic closure and special rubber gaskets, equipped with a tempered glass counter door, complete with closure. The internal chamber is made of AISI 304 stainless steel with rounded internal corners for easy cleaning and a shelled bottom to contain accidentally dropped liquids. The cooling system is entrusted to a particularly silent hermetic compressor, located in the upper part of the chamber, there is also an air condenser, finned copper tube coil, complete with a helicoidal electric fan with horizontal airflow.
