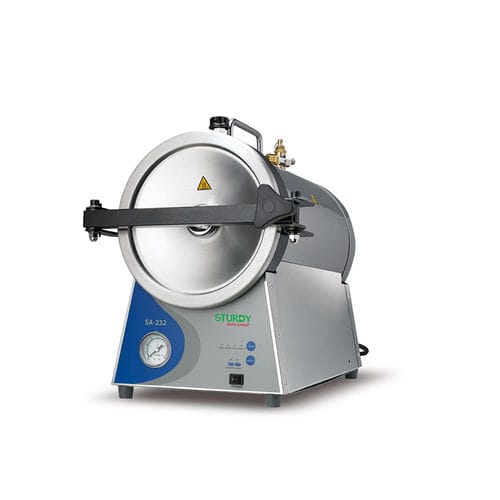

Medical autoclave SA-232

floor-standing

The autoclaves are constructed with both Microprocessor and Traditional Mechanical designs expect SA-230. They offer advantages such as power conservation, water conservation and reduced maintenance due to less parts. Control panels are designed with simple controls for basic sterilization tasks. EZ Control panel EZ maintenance Overheat protection Pressure overload protection Door safety latch (SA-232X only) Pressure safety valve Chamber size: 16 L Chamber Size - Ø 230mm × 410 mm(D) Chamber Capacity (L) - 16 Overall size (mm) - 335(W) × 430(H) × 510(D) Power Consumption - 220V ~ 240V / 1.4KW(MAX) 110V / 1.2KW(MAX.) Using Pressure & Temoerature - UNWRAPPED / WRAPPED / LIQUID: 126°C/APPROX. 1.4 bar(kgf/cm2) Design Temperature - 140°C Safety Device - Pressure safety valve Temperature protect switch Low water protection switch Time and complete alarm Emergency Exhaust Valve Pressure control switch Safty Approval - Chamber Design by ASME/ USA strandard Life Time - 7 Years Standard Accessories - Sterilization Box - 1 pc. (st.st. #304) Heater cover / 1 pcs Optional Accessories - Tray set (Tray X 3, frame X 1 holder X1) (St.St. #304) Spring Hold x 2 pcs(St.St. #304)
