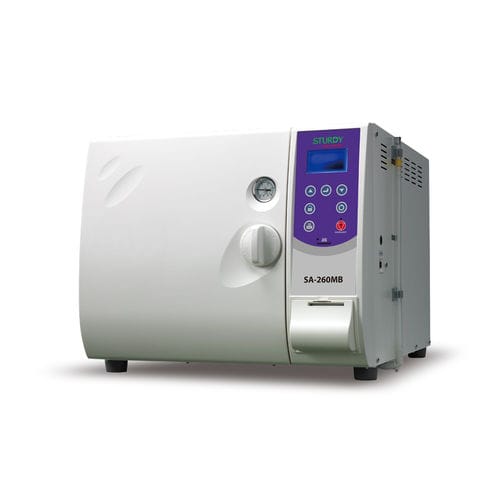

Medical autoclave SA-260MB
benchtop

medical autoclave
medical autoclave
Add to favorites
Compare this product


Characteristics

Application domain
medical
Configuration
benchtop
Temperature range

Max.: 134 °C (273.2 °F)

Min.: 121 °C (249.8 °F)

Capacity

24 l, 40 l, 50 l (6.3 gal)

Description

The Series represents Sturdy’s all purpose, top-of-line tabletop autoclave with versatility and flexibility to meet almost any situation that arises. This model uses an LCD panel along with 3 navigation buttons (up/down/return), which allow you to configure almost everything using the screen - this minimizes the buttons on the panel and allows the series more flexibility and functionality. Double water tanks LCD Panel, Friendly use Pre & post vacuum Prion preset program Leakage, Helix, B.D. diagnostics Vacuum based tubal sterilization Tank can be filled manually or piped-in (filtered water) Process evaluation system Customization program Chamber size: 24 L Chamber Capacity (L) - 24 Maximum Instrument Length (mm) - 350 Maximum Load (unwrapped, solid) (g) - 5,000 Maximum Load (wrapped) (g) - 1,500 External Dimensions (mm) - 553 (W) ×440 (H) × 665 (D) Chamber Size (mm) - Ø260 mm × 450 mm (D) Gross Weight (kg) - 54 Voltage/Wattage (Heater) - 230V AC, 50/60Hz, 12A Heater - 1800W for main heater. 870W for band heater Fuses - 15A × 2, No Fuse (circuit) Breaker Water Reservoir Capacity (ml) - 4200 Water Capacity per Cycle (ml) - 1270 Sterilization Temperature (°C) - 105 – 135 Working Environment - Indoor use; Under 1,000m (altitude); Temperature 5°C to 40°C; Relative Humidity 80%RH@31°C to Relative Humidity 50%RH@40°C; Voltage fluctuation ±10 %; Transient overvoltages category II; Pollution degree 2 Transportation Conditions - -10°C to 70°C, 10%RH to 90%RH Storage Conditions - -10°C to 50°C, 10%RH – 70%RH Designed Temperature(°C) - 142 Designed Pressure - 2.76 kgf/cm² (2.7 bar) Over Pressure Protection - 2.55 kgf/cm² (2.5 bar) Air Filter Efficiency - μm≦0.3 Over Pressure Indication - Yes

Catalogs
