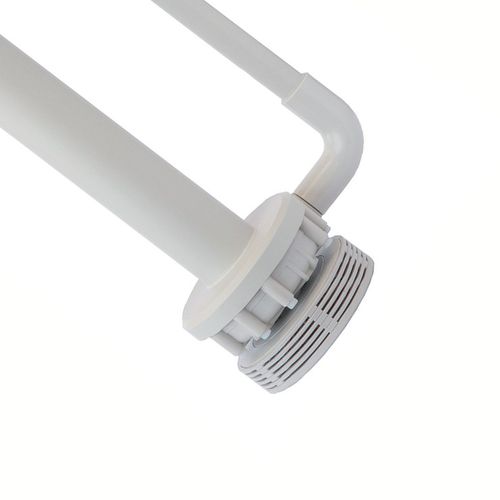

Small magnetic drive pumps available into 5 models with threaded or hose connection. The small size, low noise and the total absence of sealing components make its application ideal and safe in any special equipment and environment.
Capacity: up to 70 l/min
Construction: close coupled
Motor powers: W 15 ÷ 100
Wetted parts: PP or E-CTFE
The magnetic drive eliminates rotary seal organs and the related risks of fluid loss in the environment. The simple construction base on few components plainly assembled eases any maintenance operation.
The pump is equipped with:
pump front and rear with a single static O-ring
guide bushes housed at the two ends of the pump body support the impeller
impeller embedded with the shaft, bearing and magnetic core
electric motor thermally protected incorporates the support of the pump casing
Basis pumps are ideal for operating in water treatments, ice or drink vending machines. They can pump seawater, fresh water, acids, alkalis and all corrosive or toxic agents.
