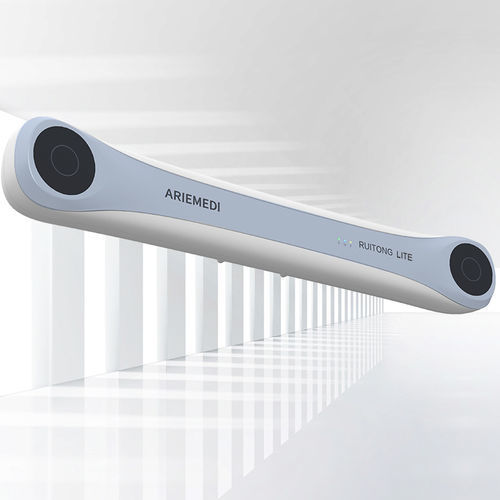

Inspection camera Ruitong ®LITE

diagnosticdigital

Product description
瑞瞳-LITE is a cost-effective binocular-vision optical navigation device that precisely monitors object position and movement by tracking miniature markers attached to the object. Based on a proprietary FPGA technology platform, it resists thermal-drift and electromagnetic interference, adapts to varied environments, and delivers high-frequency mid-to-long-range real-time tracking and positioning.

Innovative technology

• Sub-millimeter positioning accuracy — Provides sub-millimeter level accuracy suitable for a range of precision applications.
• High sampling frequency — 120 Hz sampling rate captures rapid target motion for accurate real-time dynamic tracking.

Specifications
Specification: parameters
Overall dimensions: 588*80*86 mm
Positioning accuracy (RMS): sub-millimeter
Sampling frequency: 120 Hz
Optimal tracking range: 950 mm ~ 2400 mm
Maximum working distance: 3 m

Application scenarios

• Scientific research
• Research and teaching

Application fields

• Smart healthcare
  Intelligent diagnostic devices
  Intraoperative assessment support
  Clinical research and training
• Industrial manufacturing
  Precision assembly and calibration
  Quality inspection and control
  Surface defect detection
• Education & research
  Visual simulation platforms
  3D teaching model demonstration
  Virtual laboratories
• Film & entertainment
  Metaverse applications
  Motion tracking
  Game modelling

Features / specifications (summary)

• Binocular-vision based optical navigation system
• Tracks miniature markers attached to objects to monitor position and motion
• Proprietary FPGA platform resisting thermal drift and electromagnetic interference
• Sub-millimeter positioning accuracy
• Sampling frequency: 120 Hz
• Optimal tracking range: 950 mm ~ 2400 mm
• Maximum working distance: 3 m
