Surgical camera Ruitong ®MAX-Vision

digital3Dhigh-definition

Product description

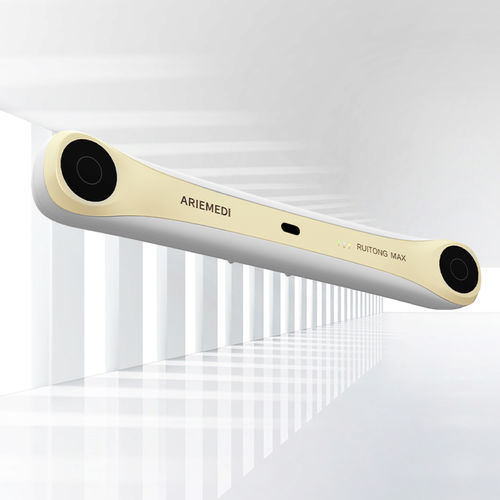

瑞瞳®MAX-Vision is a binocular optical navigation device that precisely monitors the position and movement of objects by tracking miniature markers attached to instruments or anatomy. Integrated laser positioning and an RGB camera enable target locking and high-precision, wide-range real-time tracking.

Innovative technology

• RGB high-definition vision: integrated laser positioning with RGB imaging to deliver high-definition color video stream, supporting augmented reality and real-time scene visualization
• High precision and sampling rate: 0.12 mm RMS accuracy and 120 Hz sampling rate to capture instrument and marker motion for stable intraoperative navigation
• Augmented reality overlay: real-time overlay of preoperative 3D anatomical data on the video to visualise vessels, nerves and other structures
• Remote collaboration support: live streaming of the surgical view for remote assistance and training

Application scenarios

• Augmented reality visualization
• Remote surgical training and demonstration

Application fields

• Smart healthcare: image-guided surgery, intraoperative decision support, clinical research and training
• Industrial manufacturing: precision assembly and calibration, quality control, surface defect detection
• Education and research: visual simulation platforms, 3D teaching models, virtual laboratories
• Film and entertainment: metaverse, motion capture, game modeling

Features / Technical specifications

• Device dimensions: 588 × 80 × 86 mm
• Positioning accuracy (RMS): 0.12 mm
• Sampling frequency: 120 Hz
• Maximum tracked objects: 25 tools / 200 markers
• Optimal tracking range: 950 mm – 2400 mm
• Maximum working distance: 3 m
• RGB resolution: 1080p
