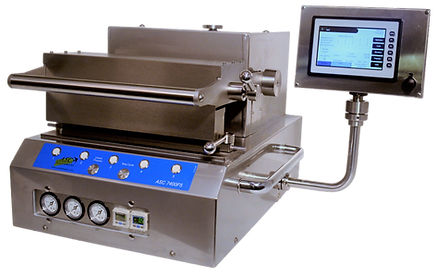

Integrity tester ASC 7400F5

CCITfor the pharmaceutical industryfor clean rooms

The ASC 7400F5 tests 5 products simultaneously, the ideal solution for testing large quantities in the shortest possible time, leaving products intact. The instrument is fitted with a 5-cavity product-specific test chamber. The operator inserts the 5 vials and closes the test chamber. The cycle starts automatically : the programmed test pressure is installed in each of the test cavities, which are subsequently isolated, and the pressure decay is measured in each individual cavity. ​This variation allows the exact quantification of the level of integrity. It is compared to a pre-defined tolerance, and the product is declared PASS or FAIL. In case of a FAIL result, the Fail product is indicated by a red light on the machine as well as on the screen. The lid remains locked, and an "Unlock Process" action is required to open the machine and remove the products. ​A Batch Report in pdf format can be generated, including all relevant data, such as batch open/close time and date, instrument ID, product ID, program nr and name, test parameters, total #tested, total #PASS, total #FAIL, as well as the detailed test result of each individual vial with time/date stamp. The report is available via network connector or optional USB port. ​A special function allows integral verification of the entire measurement chain at each cycle, certifying each measurement result instantly. ​The ASC 7400F5 is suitable for integration in production, with automated loading/unloading, for continuous inspection of production.
