Laboratory reactor FlowLab

flow chemistryautomatedglass

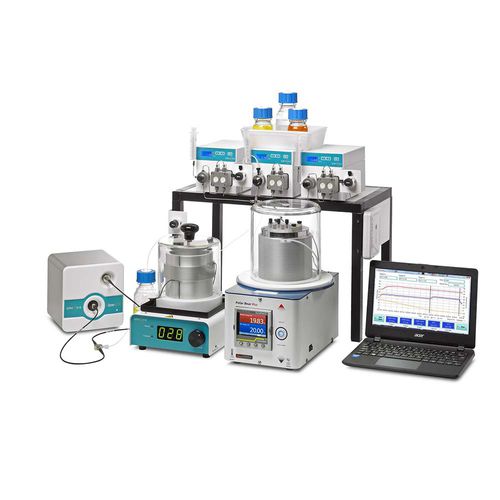

FlowLab is a versatile modular flow chemistry system built around the same high quality components as those used in theFlowSyn, but with the automated valves omitted to contain costs. Technical Specifications Reactor options include HotCoil, HotColumn, Polar Bear Plus -40 oC to +300 oC temperature range options; Pmax = 100 bar User-friendly control interface for walk-up use Stainless steel or glass column reactors Future proof – can be upgraded to include 3 HPLC pumps & 2 reactor modules The FlowLab application affords control of the system via a step-through interface that is straightforward to use. Specific control screens allow users to modify system settings and perform automated priming and wash functions in addition to designing new, or loading previous, experiments. Reactions can be run automatically on a time basis, and reaction progress is monitored in real-time from a plot of temperature and pressures. The reagents used can be entered in text fields and logged data is automatically saved. For operational safety, FlowLab software monitors pressure and temperature and will automatically shut down if there is a blockage, leakage or overheating. All system components are CE marked and are covered by a 12 month warranty against component malfunction and workmanship.
