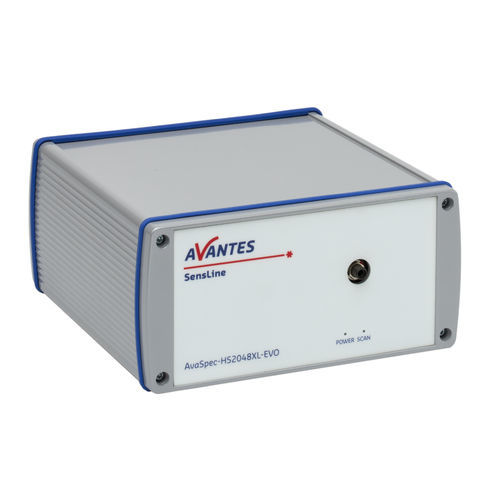

Optical spectrometer AvaSpec-HS2048XL-EVO

transferCCDbenchtop

For high-sensitivity applications where high resolution is not of paramount concern, the AvaSpec-HS2048XL-EVO is an exceptional instrument. Featuring Avantes’ HS optical bench, which has a full 0.22 numerical aperture for superior throughput, the AvaSpec-HS2048XL has a back-thinned CCD detector with 2048 pixels measuring 14×500 microns. The AvaSpec-HS2048XL-EVO uses our AS-7010 electronics board offering USB3 (10 times faster than USB2), Gigabit Ethernet and better signal processing. Technical Data Resolution - 1-20 nm, depending on configuration (see table) Stray light - <1% Sensitivity in counts/µW per ms integration time - 1,250,000 UV quantum efficiency - 60% (200-250 nm) Detector - Back-thinned CCD image sensor, 2048 pixels Signal/noise - 525:1 AD converter - 16 bit, 1 mHz Integration time - 2 µs-600 sec Interface - USB 3.0 high speed, 5 Gbps, Gigabit Ethernet, 1 Gbps Sample speed with on-board averaging - 2.44 ms/scan Dynamic range - 14,900 Data transfer speed - 2.44 ms/scan (USB3) Digital IO - HD-26 connector, 2 Analog in, 2 Analog out, 3 Digital in, 12 Digital out, trigger, synchronization Power supply - Default USB power, 700 mA. or external 12VDC, 360 mA
