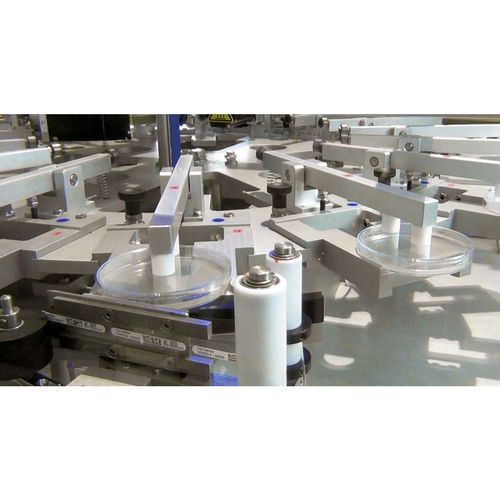

Laboratory labeling machine PDL series

automatic

The PDL model series for labeling Petri dishes from our special machine construction provides filled and sealed Petri dishes with a serialized DMC label in the minimum tolerance range at an output of 130 products/min. The system combines mechanical engineering, label material and thermal transfer printer. The Petri dishes from the previous filling/capping line are fed to the labeling system. By means of a clock star, the system transports the products through the various stations, such as labeling, the press-on unit and DMC inspection, where the grading (quality control) of the data matrix code takes place at the same time. In case of insufficient quality of the barcode, the product is ejected. By using our label dispenser RAPID SM we guarantee an accuracy of +-0.2 mm at a labeling speed of 60 m/min while maintaining the product quality. The signals are switched directly into the stepper motor card developed by us.
