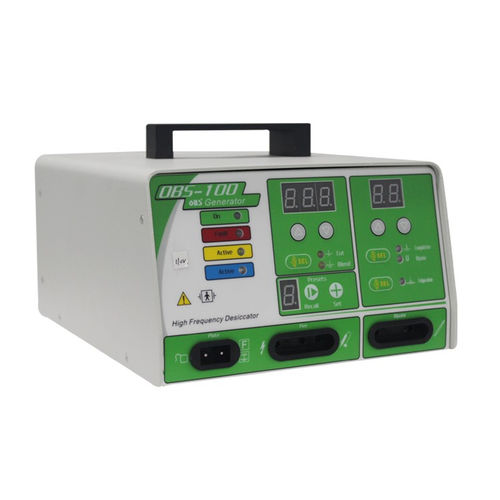

Bipolar coagulation electrosurgical unit OBS-100C(I)

radiofrequency

Portable in size, available in both monopolar and bipolar modes, convenient handle power control and memory function, suitable for micro surgery, gynecology and arthroscopy. Technical parameters: Environmental temperature range: 5°C~ 40°C Relative moisture range: ≤80% Atmosphere pressure range: 86.0 ~ 106.0 Kpa Working modes: Pure cut: 1w ~ 60w (Load 500Ω) Blend: 1w ~ 60w (Load 800Ω) Coagulation: 1w ~ 60w (Load 1000Ω) Fulguration: 0.1w ~ 35w (Load 1000Ω) Biploar: 1w ~ 30w (Load 200Ω) Technology data: Voltage: 220V±10V, 50Hz ±1Hz Working frequency: 357 KHz ~ 575 KHz Leakage currents to ground: Less than 0.5mA Leakage currents to patient: Less than 0.01mA Display Setting: Fulguration a.0-10 range: 0.1watt increments b.10-35range: 1.0 watt increments Cut, Blend, Coagulation and Bipolar 1.0 watt increments Power supply:220V±10%,50±1%Hz. Transportation and storage a)Ambient temperature range: -40°C~55°C; b) Relative moisture range: ≤95%; c)Atmosphere pressure range: 500hPa~1060hPa. Key Features OBS-100 Electrosurgical Generator with state-of-art technology offers superb performance on the electrco-surgery, and shows remarkable safety, reliability and convenience. 1 .Two levels of coagulation: pinpoint coagulation and fulguration Pinpoint coagualtion provides précisé control of bleeding in localized areas. Fulguration provides greater control of bleeding in highly vascular over surface areas. 2.Presets The unit incorporâtes as many as ten user-defined presets for easy recall of frequently and settings. 3.lsolated RF output for Cut, Blend and Coag modes This minimizes the potential of alternate site burns.
