Temperature tester DPM-2350

pressurecalibrationfor medical devices

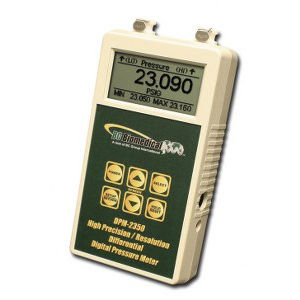

The Model DPM-2350 Series is a microprocessor-based, high precision, high resolution, differential Digital Pressure Meter family. These meters measure both gas and liquid pressures and provide multiple engineering unit displays for the results. The unit has an optional temperature sensor input to measure pressure and temperature all in one meter. The DPM 2300 Series meters are intended to be used by skilled technicians in the evaluation and servicing of a wide variety of medical equipment. Please note that this is a Differential Pressure Meter designed to report the difference in pressure between its high and low ports. For a traditional pressure meter with the same features please look at our DPM-2300. DPM-2350 (Basic Features): • Precise differential Pressure/Vacuum measurement • Enhanced resolution • Large graphic display • Selectable options and parameter setup • 0.05% FS pressure accuracy • Standard pressure scales include 13 different Engineering unit ranges: (psi, mmHg@0c, mmHg@20c, inHg@0c, inHg@20c, CmH2O@20c, inH2O@4c, inH2O@20c, inH2O@60f, Kg/cm2, kpa, bar, mbar) • Digital calibration – no pots to turn • Battery life display (0 to 100%) • Programmable digital filter • 24 bit measurement • Digital zero adjustment – no pots to turn
