Electrical safety analyzer SA-2600-AUS

integrityfor medical devicesportable

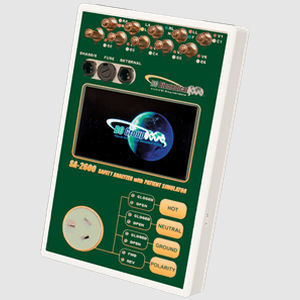

The BC Biomedical Model SA-2600 -AUS is a fully automated microprocessor-based Electrical Safety Analyzer with built in Patient Simulator and Bluetooth technology. The SA-2600-AUS has fully customizable autosequence allowing for a full run-though of testing with limited user interaction. This release comes with a 4.3 inch color touchscreen, compatible with the MyBC Mobile App and allows for a multitude of tests to be performed on a device using the same unit and lead connections. It provides a full Electrical Safety Analyzer, as well as, ECG Simulation with four waveforms with constant QRS duration and six machine performance testing waveforms. There is Patient Lead testing for 10 inputs. Features: Custom and fixed autosequences Micro USB and Bluetooth communications Small, lightweight portable analyzer Line voltage measurement Device under test current measurement 200mA earth/ground lead resistance Point-to-point testing Enclosure/chassis leakage current External resistance External leakage current Source receptacle wiring integrity monitor MAP (isolation) function Internal ECG simulator True RMS readings AAMI ES1-1993 or IEC 60601 selectable test loads 90 to 264 VAC operation Touch controls keys – no knobs LED status indicators Audible feedback
