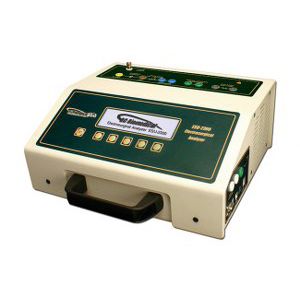

Temperature analyzer ESU-2300

for electrosurgical unitsportabledigital

The ESU-2300 is an Electrosurgical Analyzer. The “measurement engine” of the ESU-2300 is a specially-engineered true-RMS RF ammeter and wattmeter, designed to measure the complex RF waveforms produced by electrosurgical generators. The ESU-2300 has been designed to comply with electrosurgical manufacturer industry standard current sensing technology and utilizes an internal precision RF Current Transformer. The analyzer utilizes a precision internal test load resistor network. The ESU-2300 is intended to be routinely used to measure the various parameters relating to the testing and performance validation of electrosurgical generators. DFA® Technology allows the ESU-2300 to aggressively digitize the complex electrosurgical generator waveform, analyze its components and provide accurate and stable results. It may be used as a stand-alone meter or in conjunction with a PC utilizing the optional software. Product Highlights: • True RMS readings using patent pending DFA® technology • Industry standard current sensing technology • mV, mV peak, crest factor and power (wattage) ranges • RF current (mA) and power (watts) can be displayed • Internal precision load resistor network: 50 ohms to 750 ohms in 50 ohm increments External load resistor capability – uses the external resistor value as a discrete value or add it to any internal load resistor value • 2.5% of reading accuracy on RF current (mA) • 5% of reading accuracy on RF power (watts) • Internal load resistor network is cooled with temperature and power controlled cooling fan
