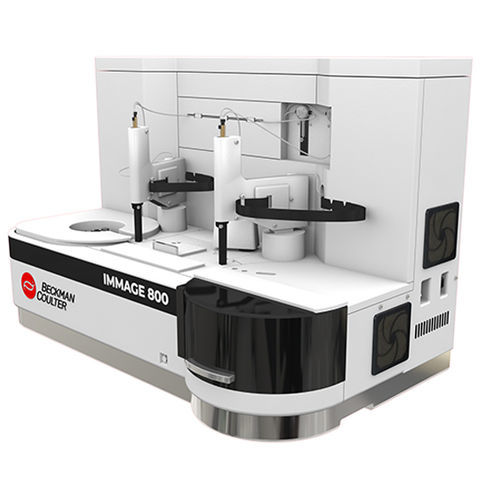

Automatic clinical chemistry analyzer IMMAGE® 800

benchtopinfraredprotein

Summary Fast, cost-effective solution for disease testing to support diagnosis and monitoring. The IMMAGE 800 protein chemistry analyzer delivers Dual Detection Rate Nephelometric Technology and a broad test menu including enhanced User Defined Reagent (UDR) capability. Enhanced software provides USB data storage and USB printer compatibility.

Simplified UDR capability

• Plot UDR data curves
• Use existing buffers and diluents for UDRs
• Perform single-point calibration updates
• Enter reagent-specific information
• Utilize within-lot calibration
• Flag antigen excess

Enhanced productivity

• Sample loading while the analyzer is running for continuous workflow
• Dynamic blanking methodology reduces interference from non-specific reactions
• Integrated antigen excess solution eliminates separate preparation steps
• Barcoded, liquid, ready-to-use reagents for streamlined handling
• Single-point calibration verification reduces operator time

Innovative technology

• Rate Nephelometry delivers timely, specific protein analysis
• Rate Inhibition Nephelometry detects and quantifies therapeutic drug levels
• Rate NIPIA (Near Infrared Particle Immunoassay) increases analytical sensitivity and extends the test menu to high-sensitivity assays

Additional benefits

• Peak Rate Nephelometry provides consistent protein testing results
• True antigen excess handling and single-point calibration save preparation time
• Reliable instrument performance with limited service requirements improves uptime
• Broad test menu with liquid, ready-to-use reagents and easy inclusion of additional UDRs supports evolving clinical needs

Technical characteristics / specifications

• Model: IMMAGE® 800
• Brand: Beckman Coulter
• Technology: Dual Detection Rate Nephelometric Technology (Rate Nephelometry)
• Additional detection modes: Rate Inhibition Nephelometry; Rate NIPIA (Near Infrared Particle Immunoassay)
• UDR capability: enhanced User Defined Reagent support including plotting of UDR curves, reagent-specific information entry, within-lot calibration and single-point calibration updates
• Software features: USB data storage and USB printer compatibility
• Reagents: barcoded, liquid, ready-to-use reagents; ability to utilize existing buffers and diluents for UDRs
• Workflow: sample loading while analyzer is running; dynamic blanking methodology; integrated antigen excess solution
• Calibration/verification: single-point calibration verification; within-lot calibration; antigen excess flagging
• Product variant example: A15501 - IMMAGE 800 System, 120V
