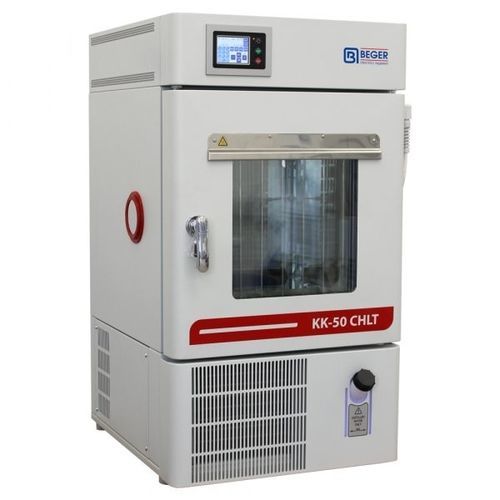

Climatic chambers BEGER enable accurate simulation of environmental conditions and are used for research into changing temperature and humidity conditions.
Temperature and relative humidity controlled test polygon;
Material temperature & Rh resistance and product testing;
Maintaining superior temperature & Rh stability;
Sample conditioning prior to other tests;
Data loggers and sensors calibration;
World class metrology performance;
Accelerated ageing;
Stress tests.
Attributes
Internal dimensions (WxHxD) - 400 x 375 x 350 mm
Heat up rate - 5,3 °C/min (EN 60068-3-5)
Cool down rate - 1,8 °C/min (EN 60068-3-5)
Temperature display resolution - 0.1 °C
Temperature set resolution - 0.1 °C
Temperature stability -
± 0,2 °C @ – 40°C
± 0,05 °C @ 50 °C 50 % Rh ± 0,05 °C @ 90 °C 90 %
Rh ± 0,2 °C @ 180°C
Temperature uniformity -
± 1,0 °C @ – 40 °C
± 0,4 °C @ 50 °C 50 %
Rh ± 0,4 °C @ 90 °C 90 % Rh ± 1, 5°C @ 180 °C
Relative humidity range - 10…98 %
Relative humidity display resolution - 0.1 %
Relative humidity set resolution - 1 %
Relative humidity stability -
± 0,5 % @ 50 °C 50 % Rh
± 0,5 % @ 90 °C 90 % Rh
Temperature control - PID
Relative humidity control - Dew point humidity control / dry air purge for extended
Power supply - 230V 50/60Hz
Interface - RS 232 (USB or Ethernet as accessory)
Shelve - 1 (max 6)
Shelve capacity - 25 kg
Max capacity - 30 kg
Access port - Ø 40 standard (Ø 50, Ø 90 as accessory)
Noise (dBA) @ 1 m distance - 58
Weight - 125 kg
