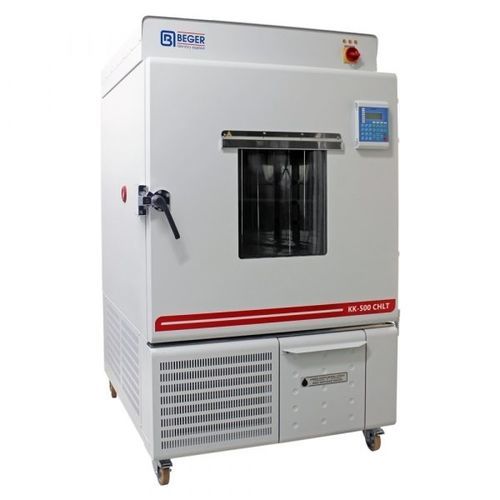

Climate chamber KK-500 CHLT

humiditytemperaturesimulation

Climatic chambers BEGER enable accurate simulation of environmental conditions and are used for research into changing temperature and humidity conditions. Temperature and relative humidity controlled test polygon; Material temperature & Rh resistance and product testing; Maintaining superior temperature & Rh stability; Sample conditioning prior to other tests; Data loggers and sensors calibration; World class metrology performance; Accelerated ageing; Stress tests. Attributes Internal dimensions (WxHxD) - 800 x 800 x 800 mm Heat up rate - 3,3 °C/min (EN 60068-3-5) Cool down rate - 1,8 °C/min (EN 60068-3-5) Temperature display resolution - 0.1 °C Temperature set resolution - 0.1 °C Temperature stability - ± 0,5 °C @ – 40 °C ± 0,06 °C @ 50 °C 50% Rh ± 0,1 °C @ 90 °C 90 % Rh ± 0,2 °C @ 180 °C Temperature uniformity - ± 0,7 °C @ – 40 °C ± 0,3 °C @ 50 °C 50 % Rh ± 0,4 °C @ 90 °C 90 % Rh ± 1,5 °C @ 180 °C Relative humidity range - 10…98 % Relative humidity display resolution - 0.1 % Relative humidity set resolution - 1 % Relative humidity stability - ± 0,5 % @ 50 °C 50 % Rh ± 0,5 % @ 90 °C 90 % Rh Temperature control - PID Relative humidity control - Dew point humidity control / dry air purge for extended Power supply - 3x400V 50/60Hz Interface - RS 232 (USB or Ethernet as accessory) Shelve - 1 (max 6) Shelve capacity - 50 kg Max capacity - 150 kg Access port - Ø 40 standard (Ø 50, Ø 90 as accessory) Noise (dBA) @ 1 m distance - 62 Weight - 435 kg
