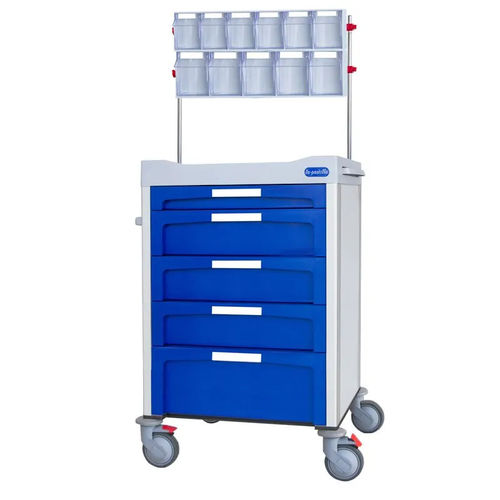

Medical trolley Novimed® F-DNOVBASC

for elderly carestoragemedicine distribution

Product overview
Tilt bin storage cart for nursing homes and clinical environments. Modular design adapts to different care areas through a wide range of adjustable accessories and interchangeable tilt-bin configurations. Delivered with one BOX-5 tilt container; additional box configurations and stacking levels are available.

Main features

• Removable foldable side table (included)
• Ergonomic push handle
• Support frame for tilt containers
• BOX-5 tilt container included (one unit by default)
• Optional container configurations: 3, 4, 5, 6 and 9-box modules
• Interchangeable label holders in drawers
• All accessories adjustable in height and position

Manufacturing materials

• Anodized aluminum profiles for accessory mounting
• Compacmel base
• Fibraplast lateral panels
• Tilt containers in polyethylene
• ABS drawers with soft-close system
• Telescopic U-shaped slides

Drawers and cleaning

• Drawers with 110% extraction for full rear access
• Smooth exterior design facilitates thorough cleaning

Wheels

• 4 wheels Ø 125 mm
• 2 wheels with brake to keep the cart static
• 2 wheels with directional lock
• Optional wheels: directional, antistatic or special-purpose

Accessories included

• Tilting container BOX-5
• Push handle
• Side rail
• Upper rail for overhead accessories
• IV pole with 2 hooks (standard)
• Support for overhead accessories
• Consumables canister holder
• Extendable worktop / foldable side table
• Waste container (capacity: 19 litres)
• Glove holder

Tilting bin modularity & box (X-BOX) dimensions
Modular system allows 1 to 6 stacked levels and column box counts of 3, 4, 5, 6 or 9. Example box dimensions:

• X-BOX-3: 600 x 200 x 240 mm
• X-BOX-4: 600 x 170 x 206 mm
• X-BOX-5: 600 x 133 x 164 mm
• X-BOX-6: 600 x 92 x 114 mm
• X-BOX-9: 600 x 63 x 84 mm

Packaging & weight

• Weight: 47 kg (without accessories)
• Packaging manually performed to ensure product integrity
• European pallet: 1200 x 800 mm
• American pallet: 1200 x 1000 mm

Security options

• Optional digital lock
• Optional key lock

Customization & drawer configurations
Fully customizable product with multiple basic models and drawer layout options (examples: 5‑drawer, 6‑drawer). Example drawer combinations: 5 x 155 mm; 2 x 75 mm + 4 x 155 mm; 3 x 75 mm + 2 x 155 mm + 1 x 235 mm, etc.

Technical specifications

• Model / Series: Novimed®
• Reference: F-DNOVBASC
• Intended use: nursing homes, geriatrics, medication distribution, emergency services and clinical assistance in residences and geriatric centres
• Standard included container: BOX-5 (one included)
• Container options: 3, 4, 5, 6 or 9-box configurations and 1–6 stacked levels
• Materials: anodized aluminum profiles; Compacmel base; Fibraplast lateral panels; tilting polyethylene containers; ABS soft-close drawers; telescopic U-shaped slides
• Wheels: 4 x Ø125 mm (2 braked, 2 locking); optional directional / antistatic wheels
• Waste container capacity: 19 litres
• Weight: 47 kg (without accessories)
• Packaging: European pallet 1200 x 800 mm or American pallet 1200 x 1000 mm
• Security: digital lock or key lock options available
