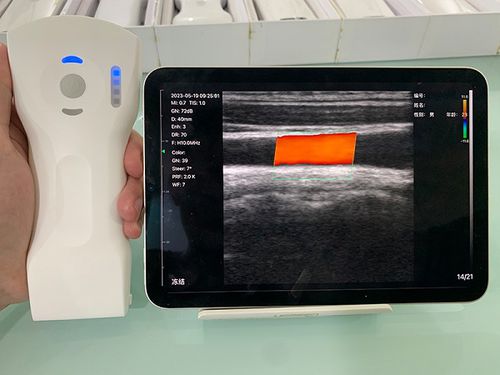

Hand-held ultrasound system CLfor multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imaging
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Application
- for multipurpose ultrasound imaging, for gynecological and obstetric ultrasound imaging, for abdominal and pelvic ultrasound imaging, for emergency medicine ultrasound imaging, for urology ultrasound imaging, for breast ultrasound imaging, for anesthetic and intensive care ultrasound imaging, for lung ultrasound imaging
- Imaging modes
- B/W, color doppler, needle guidance
- Options
- built-in console, wireless probe
- Probe type
- convex-array, linear-array
- Weight
200 g
(7.05 oz)- Length
156 mm
(6.1 in)- Height
60 mm
(2.4 in)- Depth
20 mm
(0.8 in)
Description
• Scan mode: Electronic Array, Electronic Convex & Linear array scanning
• Frequency: Convex probe 3.2/5.0MHz, Linear probe 7.5/10MHz
• Elements: 192 elements
• Channels: 64 channels
• Scanning Depth: Convex 90-300mm, Linear 20/40/60/100mm, adjustable
• Field of view: Convex R60, Linear L40
• Screen: iOS/Android/Windows screen
• Supporting system: iOS, Android, Windows
• Display mode: B, B/M, Color, PDI, PW
• Image Adjustment: gain, focus, reverse pulse harmonics, noise reduction
• Puncture Auxiliary Function: In-Plane puncture guide, Out-Plane puncture guide, automatic vascular measurement function
• Image gray scale: 256 level
• Noise reduction: 0-1-2-3-4
• Gain: 30db-105db
• Dynamic Range: 40/50/60/70/80/90/100/110
• Image/Video Storage: jpg, MP4, DICOM, store on mobile phones, Tablet PC
• Measure: distance, area, obstetrics and other
• Power: by built-in lithium battery, 2800mAh, wireless charging can extend the working time indefinitely
• Playback : manual and automatic, playback frames to be 100/200/500/1000
• WiFi Type : 802.11n/2.4G/5G dual-band 450Mbps
• Battery working time: 2 hours,
• Size: 156mm×60mm×20mm
• Net Weight: 200 gram
