Hand-held ultrasound system C7PLTfor multipurpose ultrasound imagingspectral dopplerB/W
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Application
- for multipurpose ultrasound imaging
- Imaging modes
- spectral doppler, B/W, color doppler
- Options
- wireless probe
- Probe type
- linear-array, endocavitary, phased-array, convex-array, microconvex-array
- Probe frequency
Min.: 2.8 MHz
Max.: 23 MHz
Description
Product overview
Key features
Supported probe heads
Technical specifications

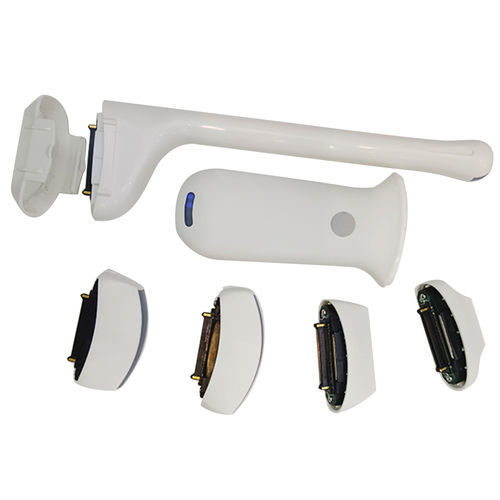

- Wireless handheld ultrasound system C7PLT with interchangeable probe support for point-of-care and clinical imaging
Key features
- Scan modes: Electronic array, electronic convex and linear array scanning
- Field of view options: Convex R60, Phasedarray R80, Linear L40
- Elements: 192 elements
- Channels: 32 channels
- Display: compatible with iOS / Android / Windows devices
- Supported platforms: iOS, Android, Windows
- Display modes: B, B/M, Color, PDI, PW
Supported probe heads
- 3.2/5.0 MHz R60 convex probe
- 3.2/4.0 MHz R45 convex probe
- 7.5/10 MHz L40 linear probe
- 10/13.2 MHz L25 linear probe
- 6.5/8.0 MHz R10 transvaginal probe
- 16/20 MHz L15 linear probe
- 18/23 MHz L10 linear probe
- 2.8/3.6 MHz P10 phased array probe
- 5.0/6.5 MHz R20 micro-convex probe
- 8.0/13 MHz R13 micro-convex probe
Technical specifications
- Model: C7PLT
- Scan modes supported: Electronic array, Electronic convex, Linear array
- Field of view options: Convex R60, Phasedarray R80, Linear L40
- Number of elements: 192
- Number of channels: 32
- Display/platform compatibility: iOS, Android, Windows
- Display modes: B, B/M, Color, PDI, PW
- Supported probes: R60, R45, L40, L25, R10 (transvaginal), L15, L10, P10 (phased array), R20 (micro-convex), R13 (micro-convex)
